OVER WRAPPING
MACHINE
150 sticks/min. 1 to 3 layers. PLC controlled. High-speed precision.
Model GES1 MN455/026 · Stick Gum · 150 Sticks/min · Optional 1–3 Layers · L 100–210 mm · 2200 kg Approx
150 sticks per minute.
1 to 3 layers. PLC precision.

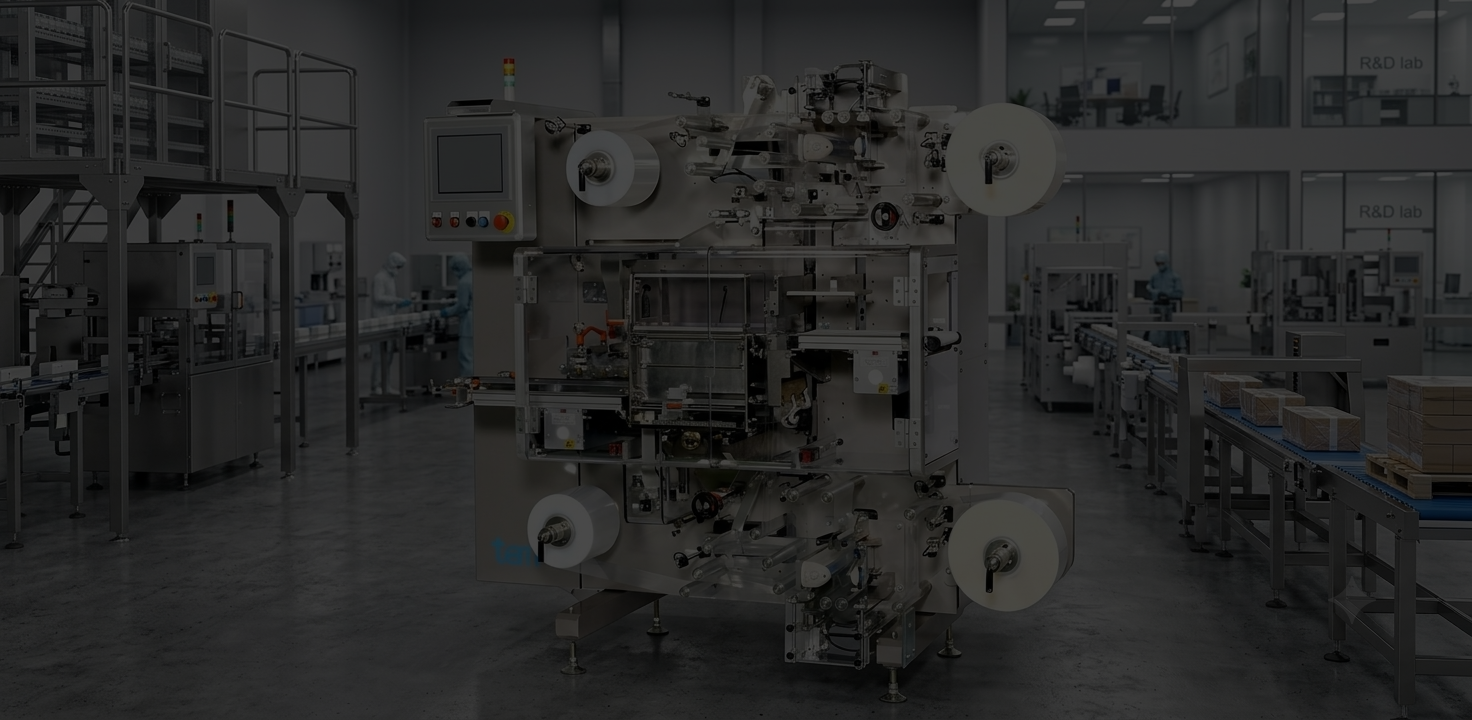

The Over Wrapping Machine GES1 MN455/026 is designed for high-speed, precise overwrapping of stick gum and confectionery products. With optional 1 to 3 wrapping layers, PLC control panel, and a product size range from 100 to 210 mm in length, it ensures tight, uniform wrapping for enhanced product presentation and extended shelf life.
Machine Diagram
Film feed. PLC wrap. 150 sticks/min.
1 to 3 optional layers.
Over Wrapping Machine GES1 MN455/026 · 150 Sticks/min · 1–3 Layer Wrapping · PLC Control · L 100–210 mm · W 30–70 mm · H 30–70 mm · 2200 kg
L1
L2
L3
1 to 3 Layers
Film Rolls
Optional Layers
Optional Layers
→
Stick Gum
Feed
Feed
→
150/min
Sticks · PLC
Over Wrap Station
PLC Controlled
PLC Controlled
→
Length
100–210 mm
Width
30–70 mm
Height
30–70 mm
Product Size
Range
Range
→
Wrapped Output
150/min
150/min
150/min
Production Capacity
1–3 Layers
Wrapping Options
PLC
Control Panel
100–210 mm
Product Length
2200 kg
Weight Approx
Specifications
Every spec built for
high-speed overwrapping.
Full specification of the Over Wrapping Machine GES1 MN455/026, engineered for stick gum overwrapping at 150 sticks per minute with optional 1 to 3 wrapping layers.
Stick Gum
Function
High-speed, precise overwrapping of stick gum and confectionery products for enhanced presentation and extended shelf life
As Per Demand
Piece Quantity
Pieces quantity configurable as per demand to match any stick gum pack size or production line requirement
PLC Panel
Control System
Controlled by PLC control panel for fully automated overwrapping cycle management and production monitoring
150/min
Production Capacity
150 sticks per minute high-speed continuous output for industrial stick gum overwrapping production lines
1 to 3 Layers
Wrapping Function
Optional 1 to 3 wrapping layers allowing single, double, or triple overwrap formats on the same machine
100–210 mm
Product Length
Wrapping object length range 100 to 210 mm accommodating all standard stick gum pack lengths
30–70 mm
Product Width
Wrapping object width range 30 to 70 mm for standard and wide stick gum pack formats
30–70 mm
Product Height
Wrapping object height range 30 to 70 mm covering all standard stick gum and confectionery product heights
2200 kg
Weight
Approximately 2200 kg total machine weight. Food-grade stainless steel structure for hygiene and long-term industrial performance
Wrapping System & PLC Control
1–3 layers.
PLC controlled.
150 sticks/min.
The Over Wrapping Machine is built for high-speed, precise overwrapping at 150 sticks per minute. The optional 1 to 3 layer wrapping function allows the same machine to produce single, double, or triple overwrap formats without changeover. The PLC control panel manages the full wrapping cycle automatically, with accurate film feeding, consistent film tension, and minimal material wastage across continuous production runs.
- 150 sticks per minute for continuous industrial stick gum production
- Optional 1 to 3 wrapping layers configurable on the same machine
- PLC control panel for fully automated wrapping cycle management
- Product length range 100 to 210 mm without major changeover
- Width and height range 30 to 70 mm for all standard stick gum formats
- Food-grade stainless steel structure for hygiene and durability
🎮 PLC Control Panel
🎞️ Optional 1–3 Layers
150
Sticks Per Minute
About This Machine
The Over Wrapping Machine by GEW is designed for high-speed, precise overwrapping of candies, toffees, and confectionery products. It ensures tight, uniform wrapping for enhanced product presentation and extended shelf life. Engineered for smooth and continuous operation, the machine delivers accurate feeding, consistent film tension, and minimal material wastage. Built with a food-grade stainless steel structure, it guarantees hygiene, durability, and reliable performance in industrial confectionery production lines.
General Engineering Works · Est. 1992 · www.generalengworks.com
150/min
Capacity
1–3 Layers
Wrapping
PLC
Control Panel
100–210 mm
Product Length
2200 kg
Weight Approx
How It Works
The overwrapping process.
Five precision stages take stick gum from the feed through PLC-controlled film layering and overwrapping to finished packaged output at 150 sticks per minute.
01
Stick Gum Feed
Individual stick gum pieces from the forming line are fed into the machine. Piece quantity is configurable as per demand for any pack size requirement.
02
Film Layer Selection
The PLC control panel manages the optional 1 to 3 wrapping layer selection. Each film roll feeds at consistent tension for tight, uniform wrapping across every piece.
03
Over Wrapping
The machine overwraps each stick gum piece in 1 to 3 layers of film at 150 sticks per minute. The PLC ensures accurate film registration and consistent wrap tension throughout.
04
Film Cutting & Sealing
The film is cut and sealed at the ends of each pack, producing a tight, tamper-evident overwrap that enhances product presentation and extends shelf life.
05
Wrapped Output
Finished overwrapped stick gum packs exit the machine at 150 per minute, ready for boxing, display, or further downstream packaging.
Product Size Range & Format Flexibility
100 to 210 mm.
One machine.
Every stick format.
The machine handles a wide product size range without major changeover. Length from 100 to 210 mm covers all standard and extended stick gum pack formats. Width and height from 30 to 70 mm accommodates slim, standard, and wide formats on the same machine. Combined with the optional 1 to 3 layer wrapping function and PLC control, it gives complete format flexibility for any confectionery overwrapping requirement.
- Product length 100 to 210 mm for all standard and extended stick formats
- Product width and height 30 to 70 mm for slim to wide pack formats
- Optional 1 to 3 layers configurable without major machine changeover
- PLC control ensures consistent film tension across all product size ranges
- Accurate feeding and minimal film wastage across the full size range
100–210 mm
Product Length Range
Applications
Where precision overwrapping matters.
Built for confectionery lines where tight overwrap presentation, flexible layer options, PLC reliability, and high-speed output are non-negotiable.
Stick Bubble Gum
Purpose-built for stick gum overwrapping at 150 pieces per minute, producing tight, uniform 1 to 3 layer packs for enhanced shelf presentation.
Candies & Toffees
Also suitable for overwrapping candies, toffees, and other confectionery products within the 100 to 210 mm length and 30 to 70 mm width and height range.
Post-Forming Lines
Positioned directly after the stick bubble gum forming and cooling line for a seamless, uninterrupted handoff into overwrapping at full production speed.
Pre-Boxing Stage
Delivers finished overwrapped stick gum packs directly to counting or boxing machines downstream at consistent 150 pcs/min output.
