Ball Forming Machine: High-Speed Bubble Gum Ball Production
The demand for attractive, consistent, and high-quality bubble gum products continues to grow in the confectionery industry. For manufacturers producing spherical, filled, hollow, or novelty-shaped bubble gums, a reliable ball forming machine is an essential part of the production line.

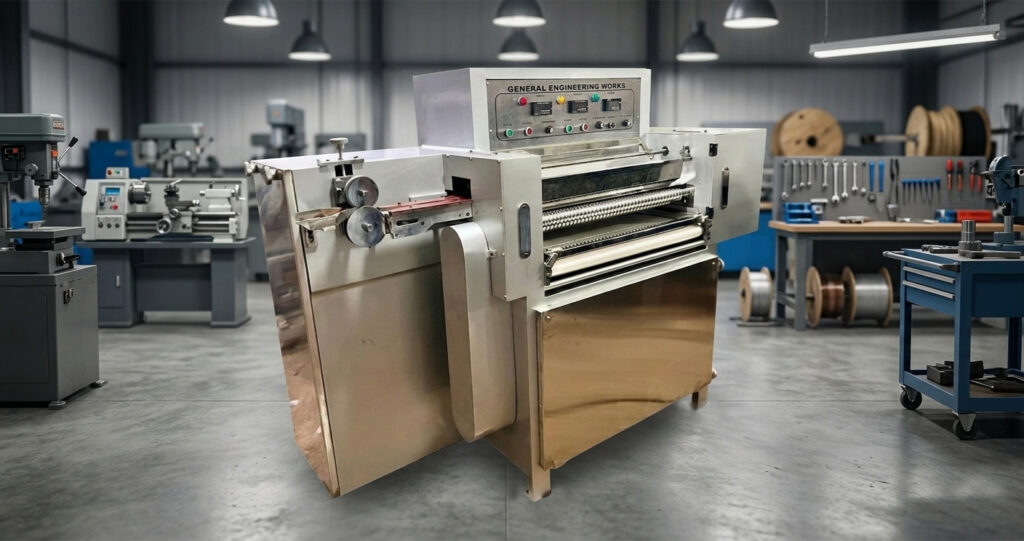

The GES3_PC1200_022 Ball Forming Machine is an industrial confectionery machine designed to produce ball-shaped and spheroid bubble gums with consistent dimensions, accurate shaping, and high production efficiency.
With a production rate of 40–50 stocks per minute, three gear motors, variable-speed control, hardened forming rollers, and a one-step sizing system, the machine is designed for continuous and reliable bubble gum production.
What Is a Ball Forming Machine?
A ball forming machine is used to transform prepared bubble gum material into accurately shaped spherical or other spheroid products.
After the bubble gum has been mixed, extruded, and prepared for forming, the material is fed into the forming machine. Precision forming rollers shape the gum into the required dimensions.
Depending on the roller mold design, the machine can produce:
- Spherical bubble gum
- Ellipse-shaped gum
- Watermelon-shaped gum
- Dinosaur egg shapes
- Flagon shapes
- Other customized novelty shapes
The roller molds can also be customized according to the manufacturer’s required product shape and size.
How Does the GES3_PC1200_022 Ball Forming Machine Work?
The ball forming process is designed to provide continuous and repeatable production.
Feeding the Gum
Prepared bubble gum material is supplied to the forming section after the extrusion and resting stages.
Precision Roller Forming
The gum passes through precision forming rollers manufactured from 4140 hard mold steel. These rollers apply controlled forming pressure to create the required shape.
Sizing
A one-step sizer helps achieve consistent dimensions across the production batch.
This is particularly important when producing bubble gums that need to maintain a uniform diameter and appearance.
Final Shape
Depending on the installed roller mold, the machine can produce spherical, elliptical, watermelon, dinosaur egg, flagon, and other customized shapes.
Transfer to the Next Production Stage
After forming, the finished bubble gum can be transferred to resting, cooling, wrapping, or packaging equipment as part of a complete confectionery production line.
Key Specifications of GES3_PC1200_022
The GES3_PC1200_022 is designed for industrial-scale bubble gum production.
Main specifications include:
- Model: GES3_PC1200_022
- Production Capacity: 40–50 stocks per minute
- Motor Power:5 kW
- Gear Motors: 3 × 1.5 kW
- Inverters: 3 × 3 HP
- Roller Length: 850 mm
- Worm Gear:80
- Roller Material: 4140 hard mold steel
- Roller Gear Material: 8620 hardened steel
- Sizer: One-step sizing system
- Control: Advanced control panel
- Safety: Fully enclosed safety covers
- Mold Size: Customizable according to requirements
These specifications are designed to provide stable mechanical performance, precise forming, and consistent production output.
High-Speed Bubble Gum Production
Production speed is an important factor for commercial confectionery manufacturers.
The GES3_PC1200_022 can produce approximately 40–50 stocks per minute, making it suitable for medium- and large-scale bubble gum manufacturing operations.
Its triple gear motor system provides balanced roller operation, while three inverters allow variable speed control for individual forming rollers.
This gives manufacturers greater control over the forming process and production speed.
Benefits of a Single-Screw Bubble Gum Extruder
Consistent Production
Continuous screw extrusion allows manufacturers to produce a steady flow of gum compound for downstream machinery.
Controlled Screw Speed
The 10 kW inverter provides variable-speed control, allowing operators to adjust the screw operation according to production requirements.
Uniform Gum Output
The 127 mm single-screw system is designed to provide consistent movement of the gum mass through the barrel and toward the die head.
Reliable Power Transmission
The three-step German gear system provides the mechanical power transmission required for continuous extrusion.
Easy Integration
The extruder can be integrated with downstream confectionery equipment for forming and processing bubble gum products.
Applications of Bubble Gum Extruders
A single-screw bubble gum extruder can be used in different confectionery production applications.
Ball Bubble Gum Production
The extruder can supply consistently sized gum rope to ball-forming equipment.
Bubble Gum Manufacturing
It can be used as part of a complete bubble gum production line where controlled extrusion is required before forming or packaging.
Filled Lollipop Production
The extrusion system can also be used to produce gum material that serves as the inner filling for certain filled lollipop production processes.
Continuous Confectionery Production
For manufacturers producing bubble gum at commercial scale, continuous extrusion can help maintain a stable production flow.
How to Improve Bubble Gum Extrusion Performance
Manufacturers should pay attention to several operating factors to achieve reliable extrusion performance.
Maintain Consistent Raw Materials
Variations in gum base, sweeteners, flavors, or other ingredients can affect extrusion behavior. Consistent ingredient quality helps maintain consistent processing.
Why Is Proper Mixing Important in Bubble Gum Production?
Variations in gum base, sweeteners, flavors, or other ingredients can affect extrusion behavior. Consistent ingredient quality helps maintain consistent processing.
Why Is Proper Mixing Important in Bubble Gum Production?
Variations in gum base, sweeteners, flavors, or other ingredients can affect extrusion behavior. Consistent ingredient quality helps maintain consistent processing.
Maintain Consistent Raw Materials
Mixing is one of the most important stages in bubble gum manufacturing. Poor mixing can result in uneven ingredient distribution, inconsistent texture, and variations between production batches.
An efficient industrial mixer helps manufacturers achieve:
- Uniform ingredient distribution
- Consistent gum texture
- Better batch-to-batch consistency
- Efficient processing of high-viscosity materials
- Improved production workflow
- Reduced manual mixing requirements
For commercial manufacturers, consistent mixing can play an important role in maintaining product quality.
Applications of a Bubble Gum Mixer
Although primarily designed for bubble gum manufacturing, industrial Z-arm mixers can be suitable for a range of thick and viscous confectionery formulations, depending on the formulation and machine configuration.
Potential applications may include:
- Bubble gum production
- Chewing gum manufacturing
- Confectionery mass preparation
- High-viscosity food mixtures
- Other products requiring intensive kneading and mixing
Manufacturers should select the machine configuration according to their specific formulation, production capacity, and processing requirements.
