Bubble Gum Extruder: How Single-Screw Extrusion Improves Bubble Gum Production
Bubble gum manufacturing requires accurate mixing, controlled temperature, consistent pressure, and reliable shaping to produce high-quality gum. One of the most important machines in this process is the bubble gum extruder.
A modern single-screw bubble gum extruder helps confectionery manufacturers transform prepared gum compound into a consistent gum rope or shape that can be supplied to downstream forming and packaging equipment.

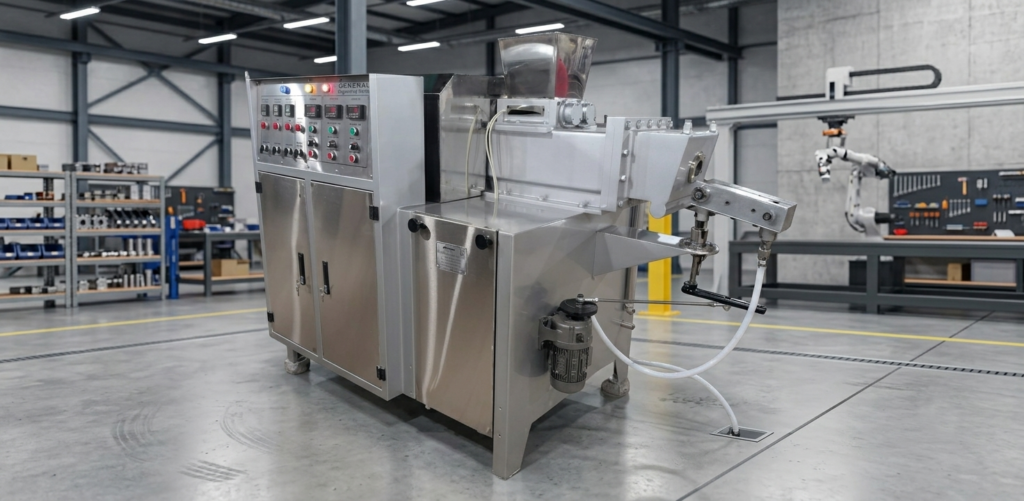

For medium and large-scale confectionery production, the Bubble Gum Extruder (Single Screw) GESS M349_022 is designed to provide smooth extrusion, uniform texture, and consistent output.
What Is a Bubble Gum Extruder?
A bubble gum extruder is an industrial confectionery machine used to continuously process and shape bubble gum compound.
After the gum ingredients have been properly mixed and kneaded, the gum mass is fed into the extruder hopper. The rotating screw then moves the gum through the heated barrel toward the die head.
During this process, controlled temperature, pressure, and screw speed help maintain the desired consistency of the gum.
The extruded gum can then be transferred to additional forming equipment for applications such as ball bubble gum, bubble gum products, or other confectionery products.
How Does a Single-Screw Bubble Gum Extruder Work?
The extrusion process starts when the prepared bubble gum compound is loaded into the machine hopper.
Gum Loading
The prepared gum compound is placed into the hopper. The feeding process needs to remain consistent to maintain stable extrusion.
Controlled Heating
The machine uses a double-jacketed barrel with a 3000 W heating system. Controlled heating helps maintain the appropriate temperature of the gum mass during extrusion.
Proper temperature control is important because excessive heat can affect gum texture, while insufficient heat can make the compound difficult to process.
Single-Screw Extrusion
The machine uses a 127 mm × 660.4 mm single screw to continuously move the gum compound through the barrel.
The screw is powered by a 7.5 kW Siemens Germany motor and supported by a three-step German gear system.
Die Head Output
After passing through the extrusion system, the gum mass reaches the die head. The die determines the final output shape and diameter before the gum moves to the next stage of production.
Mechanical Roller Assistance
A mechanical roller helping system assists the output process and helps maintain consistent gum rope sizing for downstream forming equipment.
Key Features of the GESS M349_022 Bubble Gum Extruder
The GESS M349_022 is designed for continuous bubble gum extrusion and industrial confectionery production.
Key specifications include:
- Machine Model: GESS M349_022
- Capacity: 200 kg
- Screw Type: Single Screw
- Screw Diameter: 127 mm
- Barrel Length:4 mm
- Motor: Siemens Germany
- Motor Power:5 kW
- Inverter: 10 kW
- Heating Power: 3000 W
- Head: Double Jacketed
- Gear System: Three-Step Germany Gear
- Output Assistance: Mechanical Roller System
These specifications make the machine suitable for manufacturers looking for reliable and controlled bubble gum extrusion.
Why Is Temperature Control Important in Gum Extrusion?
Temperature is one of the most important factors in bubble gum extrusion.
Bubble gum compound needs to remain soft enough to move through the screw and die while maintaining the required texture and elasticity.
The double-jacketed design helps distribute heat more evenly along the extrusion barrel. The 3000 W heating system provides controlled heating to help maintain stable gum mass temperature.
Consistent temperature can contribute to:
- Better gum texture
- More stable extrusion
- Consistent product dimensions
- Reduced processing problems
- Improved production efficiency
Benefits of a Single-Screw Bubble Gum Extruder
Consistent Production
Continuous screw extrusion allows manufacturers to produce a steady flow of gum compound for downstream machinery.
Controlled Screw Speed
The 10 kW inverter provides variable-speed control, allowing operators to adjust the screw operation according to production requirements.
Uniform Gum Output
The 127 mm single-screw system is designed to provide consistent movement of the gum mass through the barrel and toward the die head.
Reliable Power Transmission
The three-step German gear system provides the mechanical power transmission required for continuous extrusion.
Easy Integration
The extruder can be integrated with downstream confectionery equipment for forming and processing bubble gum products.
Applications of Bubble Gum Extruders
A single-screw bubble gum extruder can be used in different confectionery production applications.
Ball Bubble Gum Production
The extruder can supply consistently sized gum rope to ball-forming equipment.
Bubble Gum Manufacturing
It can be used as part of a complete bubble gum production line where controlled extrusion is required before forming or packaging.
Filled Lollipop Production
The extrusion system can also be used to produce gum material that serves as the inner filling for certain filled lollipop production processes.
Continuous Confectionery Production
For manufacturers producing bubble gum at commercial scale, continuous extrusion can help maintain a stable production flow.
How to Improve Bubble Gum Extrusion Performance
Manufacturers should pay attention to several operating factors to achieve reliable extrusion performance.
Maintain Consistent Raw Materials
Variations in gum base, sweeteners, flavors, or other ingredients can affect extrusion behavior. Consistent ingredient quality helps maintain consistent processing.
Why Is Proper Mixing Important in Bubble Gum Production?
Variations in gum base, sweeteners, flavors, or other ingredients can affect extrusion behavior. Consistent ingredient quality helps maintain consistent processing.
Why Is Proper Mixing Important in Bubble Gum Production?
Variations in gum base, sweeteners, flavors, or other ingredients can affect extrusion behavior. Consistent ingredient quality helps maintain consistent processing.
Maintain Consistent Raw Materials
Mixing is one of the most important stages in bubble gum manufacturing. Poor mixing can result in uneven ingredient distribution, inconsistent texture, and variations between production batches.
An efficient industrial mixer helps manufacturers achieve:
- Uniform ingredient distribution
- Consistent gum texture
- Better batch-to-batch consistency
- Efficient processing of high-viscosity materials
- Improved production workflow
- Reduced manual mixing requirements
For commercial manufacturers, consistent mixing can play an important role in maintaining product quality.
Applications of a Bubble Gum Mixer
Although primarily designed for bubble gum manufacturing, industrial Z-arm mixers can be suitable for a range of thick and viscous confectionery formulations, depending on the formulation and machine configuration.
Potential applications may include:
- Bubble gum production
- Chewing gum manufacturing
- Confectionery mass preparation
- High-viscosity food mixtures
- Other products requiring intensive kneading and mixing
Manufacturers should select the machine configuration according to their specific formulation, production capacity, and processing requirements.
