BUBBLE GUM
EXTRUDER
(HIGH SPEED)
600–700 kg double colour. Dual SEW 11 kW. Four-screw precision.
Model GES3 M352_022 · 100 mm × 660.4 mm Four Screw · Double Jacketed Head · 6000 W Heating · 2600 kg Approx
Four screw. Double colour.
600–700 kg/h at high speed.

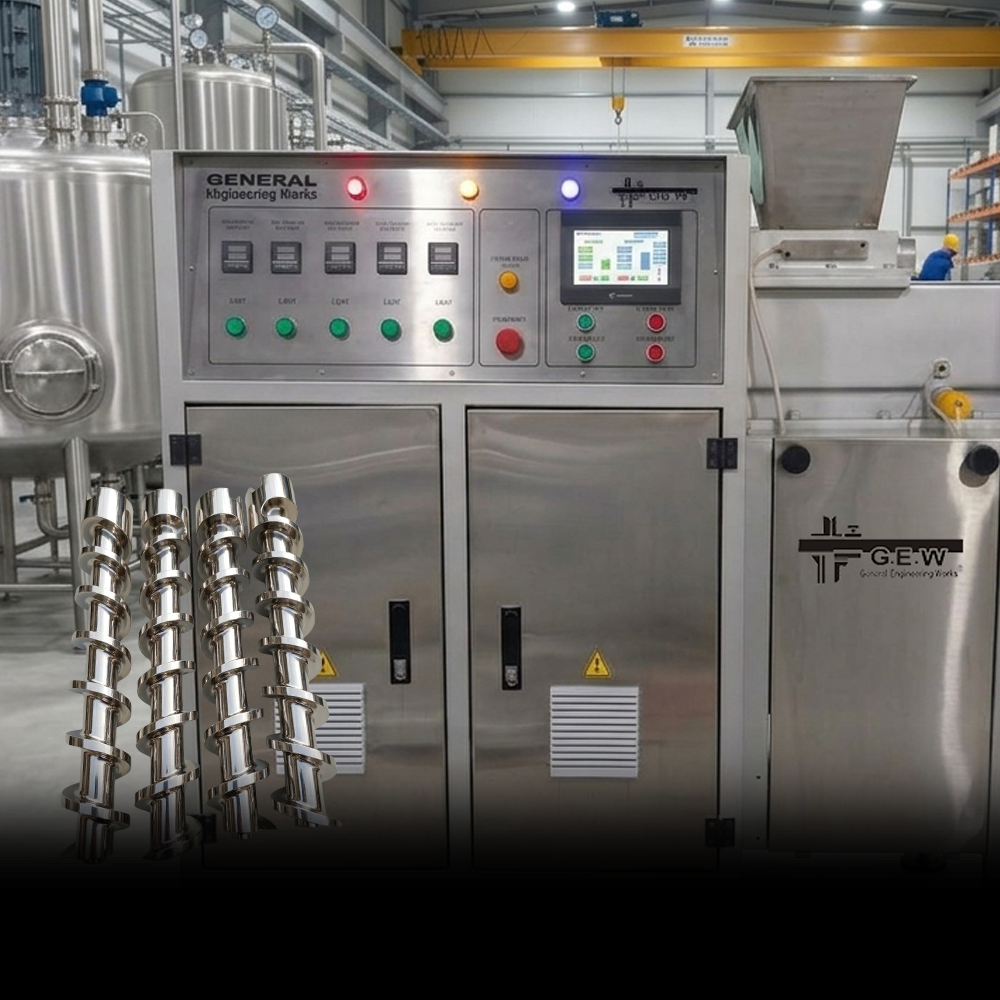

The GEW Bubble Gum Extruder (High Speed) is engineered for all types of double-colour bubble gum at 600 to 700 kg per hour. Built with a 100 mm × 660.4 mm double jacketed four-screw head, dual SEW Germany 11 kW motors, three-step Germany gear, mechanical roller helping system, and 6000 W heating power, it delivers stable pressure, uniform texture, and consistent double-colour gum forming at the highest production output.
Machine Diagram
100 mm four screw. Double jacketed.
Dual SEW 11 kW. Double colour output.
Bubble Gum Extruder GES3 M352_022 · 100 mm × 660.4 mm Four Screw · Double Jacketed · Dual SEW 11 kW × 2 / 15 kW × 2 Inverter · 3-Step Germany Gear · 6000 W Heating
Gum
Hopper
Hopper
Four
Die Head
Die Head
Mechanical
Rollers
Rollers
11kW
×2 SEW
×2 SEW
DUAL MOTOR
11 kW
× 2 SEW
15 kW
× 2 Inverter
600–700 kg/h
Double Colour
100 mm × 4
Four Screw
11 kW × 2
Dual SEW Germany
6000 W
Heating Power
2600 kg
Weight Approx
Specifications
Four screw. High speed.
Every detail engineered.
Full specification of the Bubble Gum Extruder High Speed GES3 M352_022, built for continuous double-colour bubble gum extrusion at 600 to 700 kg per hour.
Double Colour
Function
All types of double-colour bubble gum extrusion at high speed for large-scale confectionery manufacturing lines
100 × 660.4 mm
Screw Diameter
100 mm diameter four-screw system with 660.4 mm barrel length for high-speed continuous double-colour extrusion
600–700 kg/h
Capacity
600 to 700 kilogram per hour double-colour output making it the highest capacity GEW bubble gum extruder
Double Jacketed
Types of Head
Double jacketed four-screw head for even heat distribution and precise gum mass temperature control at full production speed
11 kW × 2 SEW
Drive Gear Motor
Two SEW Germany 11 kW gear motors running in parallel delivering maximum high-torque drive for the four-screw high-speed system
15 kW × 2
Drive Inverter
Two 15 kW inverters providing independent precise variable-speed control for each dual SEW motor drive system
3 Step Germany
Step Gear
Three-step gear made by Germany for precision-grade power transmission, low noise, and long service life at maximum loads
Mech. Rollers
Helping System
Mechanical roller helping system at the output for consistent double-colour gum rope sizing and smooth feed into forming downstream
6000 W
Heating Power
6000 watt heating power across the double jacketed barrel for precise, stable temperature management at high-speed 700 kg/h output
Four Screw System & Dual Drive
Four screws.
Dual SEW motors.
700 kg/h.
The high-speed extruder is built around a 100 mm × 660.4 mm double jacketed four-screw system powered by two SEW Germany 11 kW motors running in parallel. Each motor is controlled by a dedicated 15 kW inverter for independent variable-speed management. The three-step Germany gear transmits combined drive torque to all four screws for consistent high-speed double-colour extrusion at 600 to 700 kg per hour.
- 100 mm × 660.4 mm double jacketed four-screw for double-colour output
- Dual SEW Germany 11 kW × 2 motors for maximum high-torque drive
- Dual 15 kW × 2 inverters for independent speed control per motor
- Three-step Germany gear for precision power transmission at full load
- 6000 W heating power for precise temperature control at 700 kg/h
- Mechanical roller helping system for consistent output rope sizing
🇩🇪 Dual SEW Germany 11 kW × 2
🇩🇪 3-Step Germany Gear
700 kg/h
Double Colour Output
About This Machine
We are engaged in manufacturing high-performance GEW Bubble Gum Extruders designed for efficient and continuous gum production. Our extruder ensures smooth mixing, uniform texture, and consistent output quality. Built with heavy-duty stainless steel and precision-engineered screws, it delivers stable pressure and temperature control for perfect gum forming. The GEW Bubble Gum Extruder is easy to operate, energy-efficient, and ideal for medium to large-scale confectionery production lines.
General Engineering Works · Est. 1992 · www.generalengworks.com
700 kg/h
Double Colour
Four Screw
100 mm
11 kW × 2
Dual SEW
6000 W
Heating
2600 kg
Weight Approx
How It Works
The high-speed extrusion process.
Five precision stages take raw double-colour bubble gum compound through the four-screw high-speed barrel to a perfectly formed co-extruded rope at up to 700 kg per hour.
01
Gum Loading
Raw bubble gum compound for each colour channel is loaded into the extruder hopper. Dual 15 kW inverters manage the feed rate of each motor independently for precise double-colour control.
02
Barrel Heating
The 6000 W heating system warms the double jacketed barrel across all three heat zones, maintaining the precise temperature required for each colour channel at full 700 kg/h production speed.
03
Four Screw High-Speed Extrusion
Two SEW Germany 11 kW motors through three-step Germany gear drive all four 100 mm screws simultaneously, pushing both colour channels of gum mass at high speed toward the four-screw die head.
04
Double Colour Die Output
The two gum colour channels exit through the four-screw die head, co-extruded into a single rope with two distinct colour layers at the correct diameter for ball-gum or lollipop forming downstream.
05
Mechanical Roller Help
The mechanical roller helping system receives the high-speed double-colour extruded rope and assists in consistent sizing and smooth feed into the forming machine at full production rate.
Heating & Safety
6000 W heat.
Double jacketed.
Totally safety covered.
The double jacketed barrel design maintains even gum mass temperature across the full 660.4 mm four-screw length at maximum output. The 6000 W heating power provides precise zone-by-zone control for both colour channels simultaneously. Totally safety covers and a control panel with all new features are included as standard on every machine.
- Double jacketed barrel for even heat across all four screw channels
- 6000 W heating for precise temperature management at 700 kg/h
- Mechanical roller helping system for consistent high-speed rope sizing
- Totally safety covers as standard for safe large-scale continuous operation
- Control panel with all new features for full dual-motor management
6000 W
Barrel Heating Power
Applications
Where high-speed double-colour extrusion matters.
Built for the largest confectionery lines where maximum output, double-colour precision, dual-motor reliability, and German engineering are non-negotiable.
Double Colour Bubble Gum
Purpose-built for all types of double-colour bubble gum extrusion, producing a consistent two-layer co-extruded rope at 600 to 700 kg per hour.
High-Volume Ball Gum
Delivers double-colour temperature-correct gum rope directly into ball gum forming machines at the highest GEW extruder output rate.
Filled Lollipop
The four-screw die head can be configured for co-extruded filled lollipop formats, feeding the forming machine at full 700 kg/h production speed.
Large-Scale Industrial Lines
With dual SEW Germany 11 kW motors and four screws, this extruder is built specifically for the largest industrial confectionery production lines.
Ready to order?
Get in touch with our engineering team for a custom quote, technical specifications, or installation guidance.
