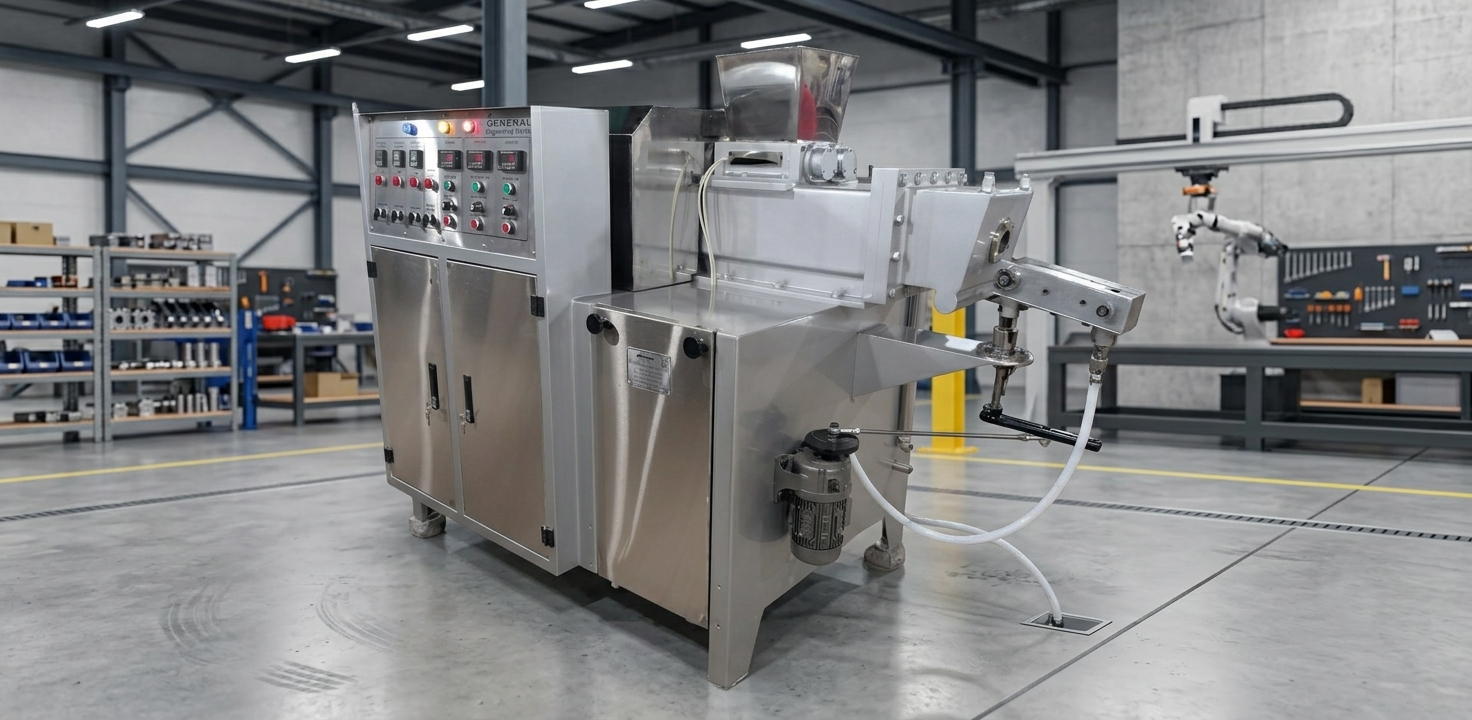

BUBBLE GUM
EXTRUDER (SINGLE SCREW)
200 kg capacity. Siemens Germany 7.5 kW. Three-step Germany gear.
Model GESS M349_022 · 127 mm × 660.4 mm Single Screw · Double Jacketed Head · 3000 W Heating · 800 kg Approx
Single screw. Double jacketed.
All types of bubble gum.
The GEW Bubble Gum Extruder (Single Screw) is engineered for smooth mixing, uniform texture, and consistent output quality across all types of bubble gum. Built with a 127 mm × 660.4 mm double jacketed single screw, Siemens Germany 7.5 kW motor, three-step Germany gear, mechanical roller helping system, and 3000 W heating power, it delivers stable pressure and temperature control for perfect gum forming at 200 kg capacity.
Machine Diagram
127 mm single screw.
Double jacketed. 3-step Germany gear.
Bubble Gum Extruder GESS M349_022 · 127 mm × 660.4 mm Single Screw · Double Jacketed Head · Siemens Germany 7.5 kW · 3-Step Germany Gear · 3000 W Heating
Gum
Hopper
Hopper
Die
Head
Head
Mechanical
Rollers
Rollers
7.5kW
SIEMENS
SIEMENS
7.5 kW
Motor
10 kW
Inverter
200 kg
Capacity
127 mm
Screw Diameter
7.5 kW
Siemens Germany
3000 W
Heating Power
Germany
3-Step Gear
Specifications
Single screw precision.
Every detail engineered.
Full specification of the Bubble Gum Extruder GESS M349_022, built for continuous, high-performance bubble gum extrusion at 200 kg capacity.
Bubble Gum
Function
All types of bubble gum extrusion with smooth mixing, uniform texture, and consistent output quality
127 × 660.4 mm
Screw Diameter
127 mm diameter single screw with 660.4 mm barrel length for high-volume continuous bubble gum extrusion
200 kg
Capacity
200 kilogram capacity suitable for medium to large-scale bubble gum confectionery manufacturing lines
Double Jacketed
Type of Head
Double jacketed single screw head for even heat distribution and precise gum mass temperature control throughout the barrel
7.5 kW Siemens
Motor Power
7.5 kilowatt Siemens Germany motor delivering reliable high-torque drive for continuous single screw extrusion
10 kW
Inverter
10 kilowatt inverter for precise variable-speed control of the single screw drive system at full production output
3 Step Germany
Step Gear
Three-step gear made by Germany for precision-grade power transmission, low noise, and extended service life
Mech. Rollers
Helping System
Mechanical roller helping system at the output for consistent gum rope sizing and smooth feed into forming downstream
3000 W
Heating Power
3000 watt heating power across the double jacketed barrel for precise and stable gum mass temperature management

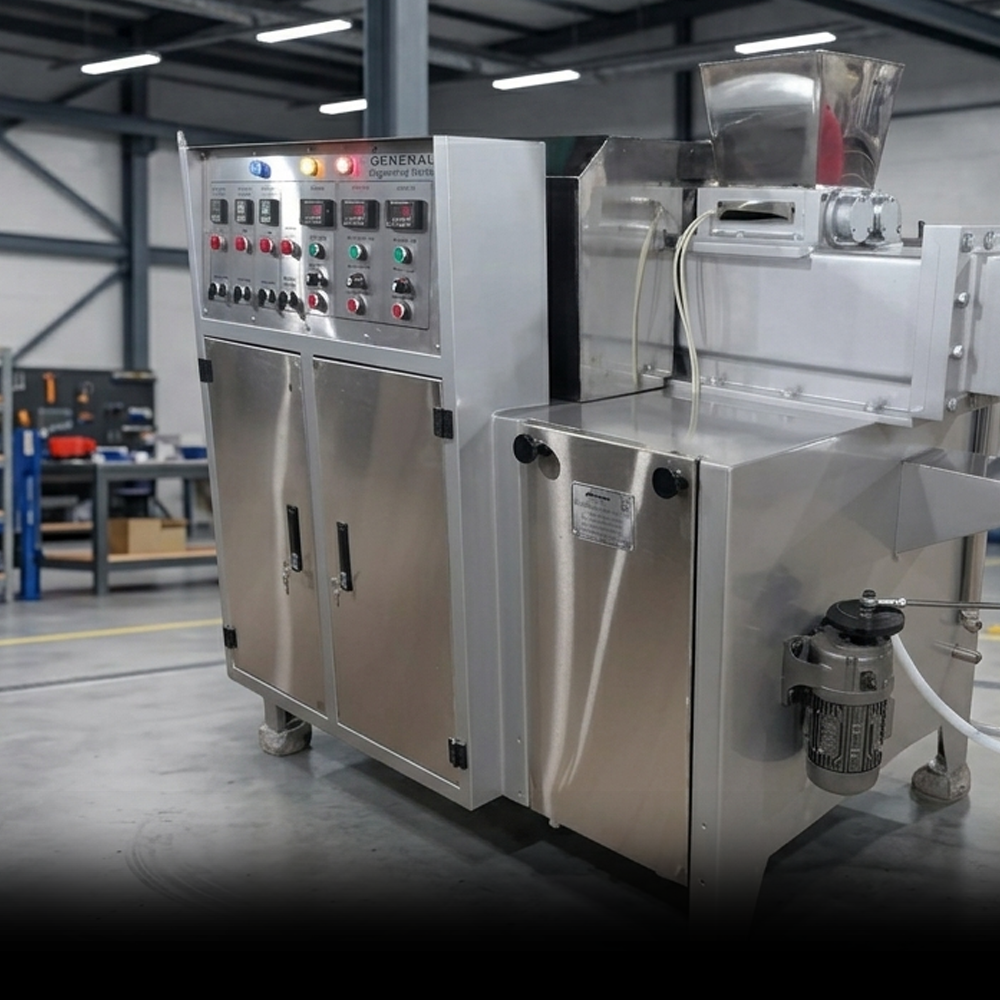

Screw System & Drive
127 mm screw.
Double jacketed.
Siemens Germany.
The extruder is built around a 127 mm × 660.4 mm double jacketed single screw that provides even heat distribution and consistent gum mass flow throughout the barrel. The Siemens Germany 7.5 kW motor with 10 kW inverter and three-step Germany gear delivers the precision torque and variable-speed control needed for reliable continuous extrusion. The mechanical roller helping system ensures a consistent output rope diameter at every production run.
- 127 mm × 660.4 mm double jacketed single screw for even heat and flow
- Siemens Germany 7.5 kW motor for high-torque continuous drive
- 10 kW inverter for full variable-speed control of the screw system
- Three-step Germany gear for precision power transmission
- 3000 W heating power across the double jacketed barrel
- Mechanical roller helping system for consistent output rope sizing
🇩🇪 Siemens Germany Motor
🇩🇪 3-Step Germany Gear
200 kg
Capacity
About This Machine
We are engaged in manufacturing high-performance GEW Bubble Gum Extruders designed for efficient and continuous gum production. Our extruder ensures smooth mixing, uniform texture, and consistent output quality. Built with heavy-duty stainless steel and precision-engineered screws, it delivers stable pressure and temperature control for perfect gum forming. The GEW Bubble Gum Extruder is easy to operate, energy-efficient, and ideal for medium to large-scale confectionery production lines.
General Engineering Works · Est. 1992 · www.generalengworks.com
200 kg
Capacity
127 mm
Screw Diameter
7.5 kW
Siemens Germany
3000 W
Heating
Germany
3-Step Gear
How It Works
The extrusion process.
Five precision stages take raw bubble gum compound from the hopper through single screw extrusion and the mechanical roller system to a perfectly formed, temperature-correct gum rope.
01
Gum Loading
Raw bubble gum compound is loaded into the extruder hopper. The feed rate is controlled through the 10 kW inverter managing the single screw speed.
02
Barrel Heating
The 3000 W heating system warms the double jacketed barrel to the precise temperature required, ensuring even gum mass temperature across all heating zones.
03
Single Screw Extrusion
The 127 mm × 660.4 mm double jacketed single screw driven by Siemens Germany 7.5 kW motor through three-step Germany gear continuously pushes the gum mass through the barrel toward the die head.
04
Die Head Output
The gum mass exits through the die head at the correct diameter and shape for ball gum, bubble gum, or filled lollipop forming downstream.
Heating System & Safety
Double jacketed.
3000 W heat.
Totally safety covered.
The double jacketed barrel design maintains even gum mass temperature across the full 660.4 mm screw length. The 3000 W heating power provides precise zone-by-zone temperature control, while the mechanical roller helping system at the output ensures consistent rope sizing. The machine ships with totally safety covers as standard, and a control panel with all new features for complete operator management.
- Double jacketed barrel for even heat distribution along the full screw
- 3000 W heating power for precise gum mass temperature management
- Mechanical roller helping system for consistent output rope sizing
- Totally safety covers included as standard for safe continuous operation
- Control panel with all new features for full machine management
3000 W
Barrel Heating Power
Applications
Where precision gum extrusion matters.
Built for confectionery production lines where consistent gum extrusion output, precise temperature control, and high-torque German engineering are non-negotiable.
All Bubble Gum Types
Designed for all types of bubble gum, continuously extruding at the correct temperature and diameter for ball gum or bubble gum forming downstream.
Ball Gum Production
Delivers consistently sized and temperature-correct gum rope directly into ball gum forming machines at 200 kg continuous output.
Filled Lollipop
The gum extrusion system produces the inner gum fill for lollipops, co-extruded or separately fed into the lollipop forming line.
