BUBBLE GUM
EXTRUDER (HIGH SPEED)
800–1000 kg/h capacity. Six screw, double jacked head. Triple drive motors.
Model GES3 M354_022 · 100 mm × 660.4 mm Six Screw · Double Jacked Head · 7000 W Heating · 4500 kg Approx
Six screw. Double jacked.
800–1000 kg/h, all bubble gum types.
The GEW Bubble Gum Extruder (High Speed) is engineered for maximum-throughput mixing, uniform texture, and consistent output across all types of bubble gum. Built with a 100 mm × 660.4 mm double jacked six screw system, triple 15 kW drive gear motors with triple 20 kW inverters, and a mechanical roller helping system, it delivers stable pressure and temperature control at 800 to 1000 kg/h.

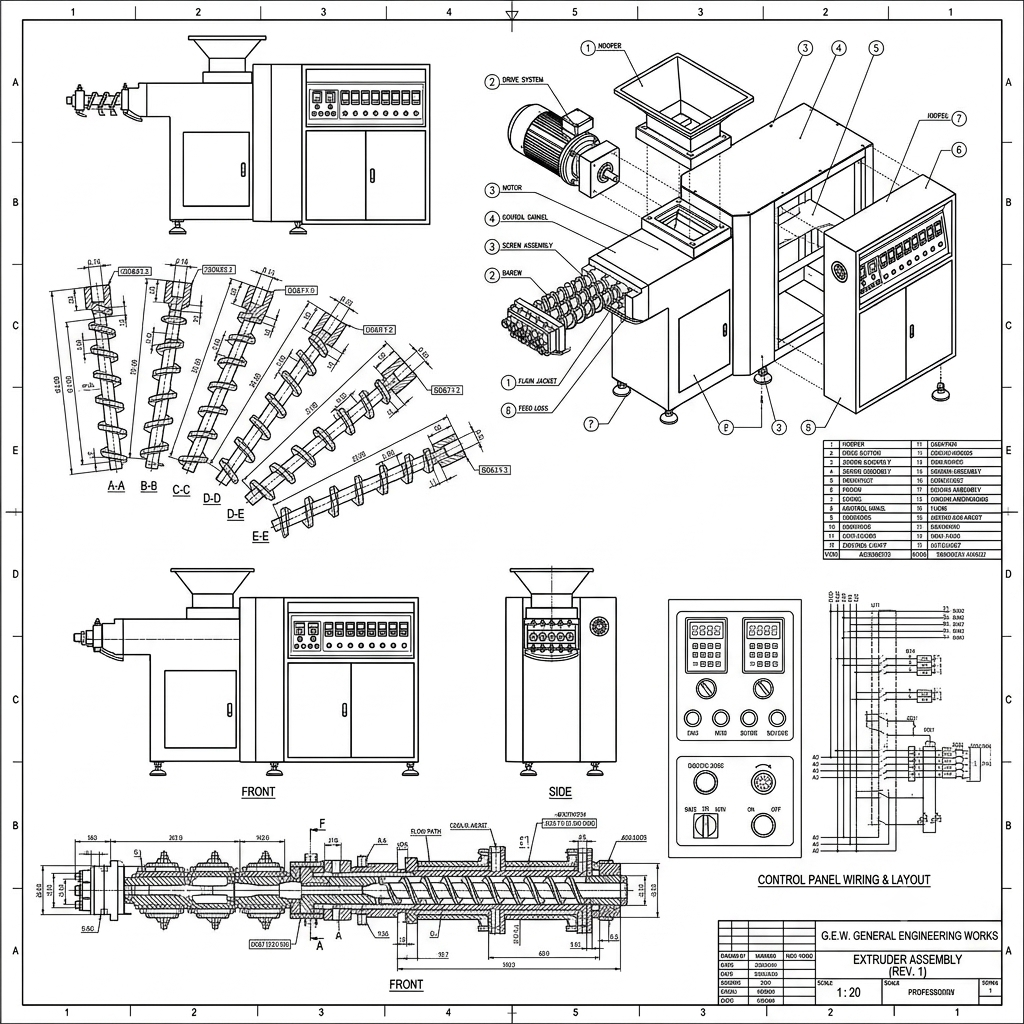

Machine Diagram
100 mm six screw.
Double jacked. Triple drive system.
Bubble Gum Extruder GES3 M354_022 · 100 mm × 660.4 mm Six Screw · Double Jacked Head · 15 kW × 3 Drive Motors · 20 kW × 3 Inverters · 7000 W Heating
Gum
Hopper
Hopper
Die
Head
Head
800–1000 kg/h
Capacity
15 kW × 3
Drive Gear Motor
20 kW × 3
Drive Inverter
7000 W
Heating
Feed ZoneMelt ZoneMixing ZoneDie Zone
Specifications
High speed precision.
Six screws, maximum throughput.
Full specification of the Bubble Gum Extruder GES3 M354_022, built for continuous, high-performance bubble gum extrusion at 800–1000 kg/h.
Bubble Gum
Function
All types of bubble gum extrusion with smooth mixing, uniform texture, and consistent output quality
100 × 660.4 mm
Screw Diameter
100 mm diameter six screw system with 660.4 mm barrel length for maximum-volume continuous bubble gum extrusion
800–1000 kg/h
Capacity
800 to 1000 kilograms per hour capacity suitable for large-scale, high-speed bubble gum confectionery manufacturing lines
Double Jacked / Six Screw
Type of Head
Double jacked six screw head for even heat distribution and precise gum mass temperature control throughout the barrel
15 kW × 3
Drive Gear Motor
Three 15 kilowatt drive gear motors delivering reliable high-torque power for continuous six screw extrusion
20 kW × 3
Drive Inverter
Three 20 kilowatt inverters for precise variable-speed control of the six screw drive system at full production output
Mech. Rollers
Helping System
Mechanical roller helping system at the output for consistent gum rope sizing and smooth feed into forming downstream
7000 W
Heating Power
7000 watt heating power across the double jacked barrel for precise and stable gum mass temperature management
4500 kg
Machine Weight
Approximately 4500 kilogram heavy-duty build for stable, continuous high-speed operation at full capacity

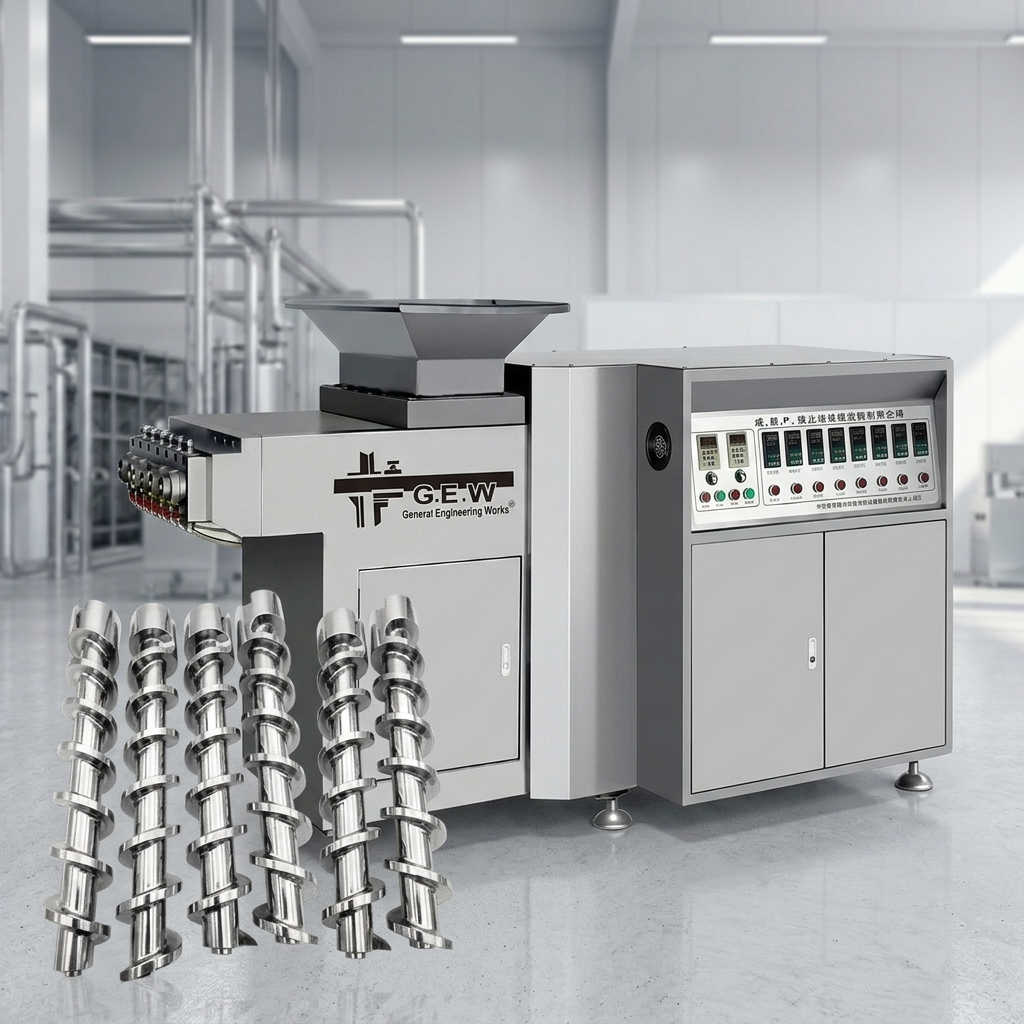

Screw System & Drive
100 mm six screw.
Double jacked.
Triple drive system.
The extruder is built around a 100 mm × 660.4 mm double jacked six screw system that provides even heat distribution and consistent gum mass flow throughout the barrel. Three 15 kW drive gear motors paired with three 20 kW inverters deliver the precision torque and variable-speed control needed for reliable continuous extrusion at 800–1000 kg/h. The mechanical roller helping system ensures a consistent output rope diameter at every production run.
- 100 mm × 660.4 mm double jacked six screw for even heat and flow
- Three 15 kW drive gear motors for high-torque continuous drive
- Three 20 kW inverters for full variable-speed control of the screw system
- Six screw configuration for maximum throughput at 800–1000 kg/h
- 7000 W heating power across the double jacked barrel
- Mechanical roller helping system for consistent output rope sizing
⚙️ Six Screw Drive
🚀 High Speed 800–1000 kg/h
1000 kg/h
Max Capacity
About This Machine
We are engaged in manufacturing high-performance GEW Bubble Gum Extruders designed for efficient and continuous gum production. Our high speed six screw extruder ensures smooth mixing, uniform texture, and consistent output quality at maximum throughput. Built with heavy-duty stainless steel and precision-engineered screws, it delivers stable pressure and temperature control for perfect gum forming. The GEW Bubble Gum Extruder is easy to operate, energy-efficient, and ideal for large-scale confectionery production lines.
General Engineering Works · Est. 1992 · www.generalengworks.com
800–1000 kg/h
Capacity
100 mm
Screw Diameter
15 kW × 3
Drive Motors
7000 W
Heating
4500 kg
Weight
How It Works
The extrusion process.
Four precision stages take raw bubble gum compound from the hopper through six screw extrusion and the mechanical roller system to a perfectly formed, temperature-correct gum rope.
01
Gum Loading
Raw bubble gum compound is loaded into the extruder hopper. The feed rate is controlled through the triple 20 kW inverters managing the six screw speed.
02
Barrel Heating
The 7000 W heating system warms the double jacked barrel to the precise temperature required, ensuring even gum mass temperature across all heating zones.
03
Six Screw Extrusion
The 100 mm × 660.4 mm double jacked six screw system, driven by three 15 kW gear motors, continuously pushes the gum mass through the barrel toward the die head at high speed.
04
Die Head Output
The gum mass exits through the die head at the correct diameter and shape for ball gum, bubble gum, or filled lollipop forming downstream.
Heating System & Safety
Double jacked.
7000 W heat.
Totally safety covered.
The double jacked barrel design maintains even gum mass temperature across the full 660.4 mm six screw length. The 7000 W heating power provides precise zone-by-zone temperature control, while the mechanical roller helping system at the output ensures consistent rope sizing. The machine ships with totally safety covers as standard, and a control panel with all new features for complete operator management.
- Double jacked barrel for even heat distribution along the full six screw
- 7000 W heating power for precise gum mass temperature management
- Mechanical roller helping system for consistent output rope sizing
- Totally safety covers included as standard for safe continuous operation
- Control panel with all new features for full machine management
7000 W
Barrel Heating Power
Applications
Where high-speed extrusion matters.
Built for large-scale confectionery production lines where maximum gum extrusion output, precise temperature control, and multi-motor drive engineering are non-negotiable.
All Bubble Gum Types
Designed for all types of bubble gum, continuously extruding at the correct temperature and diameter for ball gum or bubble gum forming downstream.
Ball Gum Production
Delivers consistently sized and temperature-correct gum rope directly into ball gum forming machines at 800–1000 kg/h continuous output.
Filled Lollipop
The gum extrusion system produces the inner gum fill for lollipops, co-extruded or separately fed into the lollipop forming line.
