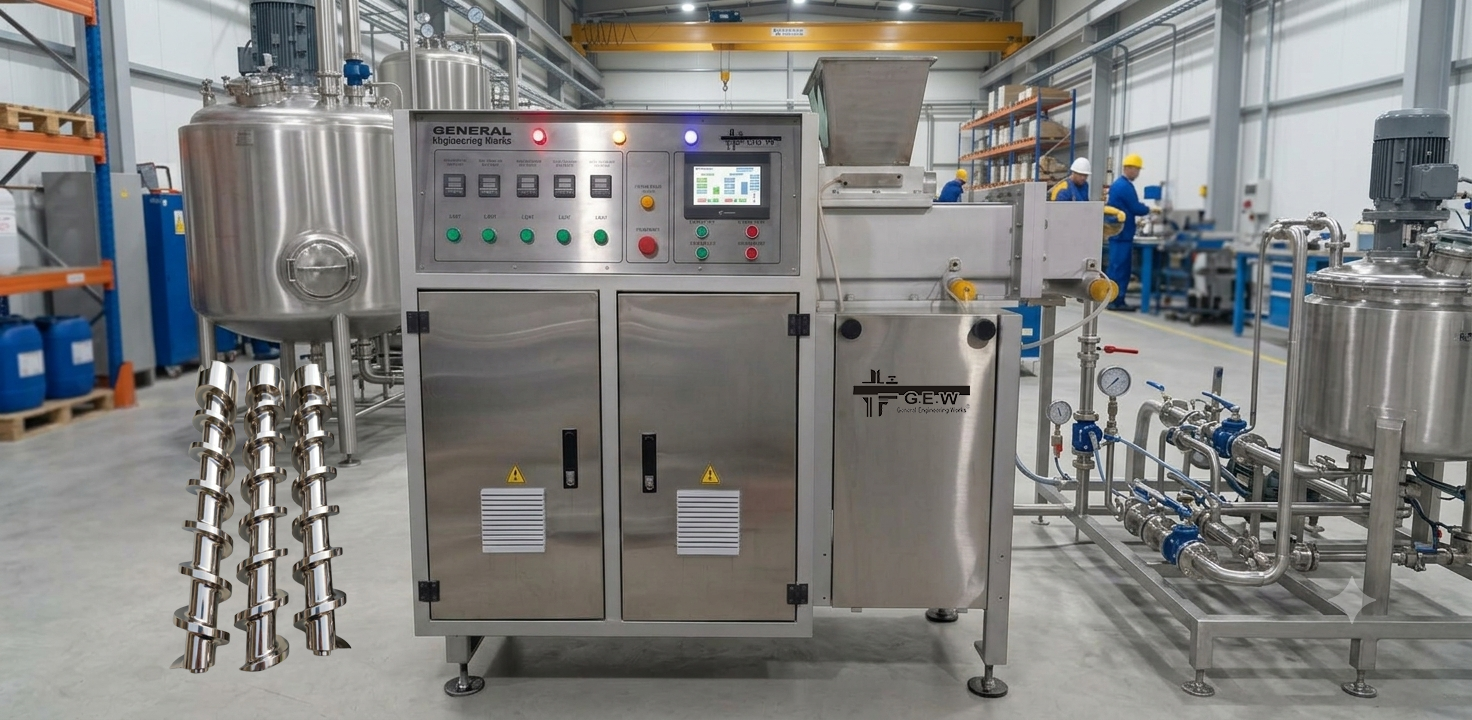

BUBBLE GUM
EXTRUDER
(TRIPLE SCREW)
450–500 kg/h triple colour. Siemens Germany 15 kW. Three-step Germany gear.
Model GES3 M350_022 · 127 mm × 660.4 mm Triple Screw · Double Jacketed Head · 5000 W Heating · 2000 kg Approx
Triple screw. Triple colour.
450–500 kg/h of bubble gum.
The GEW Bubble Gum Extruder (Triple Screw) is engineered for all types of bubble gum at 450 to 500 kg per hour in triple colour output. Built with a 127 mm × 660.4 mm double jacketed triple screw, Siemens Germany 15 kW motor, three-step Germany gear, mechanical roller helping system, and 5000 W heating power, it delivers stable pressure, uniform texture, and consistent triple-colour gum forming at large-scale production output.
Machine Diagram
127 mm triple screw.
Double jacketed. Three colour output.
Bubble Gum Extruder GES3 M350_022 · 127 mm × 660.4 mm Triple Screw · Double Jacketed Head · Siemens Germany 15 kW / 20 kW · 3-Step Germany Gear · 5000 W Heating
Gum
Hopper
Hopper
Triple
Die Head
Die Head
Mechanical
Rollers
Rollers
15kW
SIEMENS
SIEMENS
15 kW
Motor
20 kW
Inverter
450–500 kg/h
Triple Colour
127 mm
Screw Diameter
15 kW Siemens
Motor Power
5000 W
Heating Power
2000 kg
Weight Approx
Specifications
Triple screw precision.
Every detail engineered.
Full specification of the Bubble Gum Extruder GES3 M350_022, built for continuous triple-colour bubble gum extrusion at 450 to 500 kg per hour.
Bubble Gum
Function
All types of bubble gum extrusion with triple colour output for large-scale confectionery manufacturing lines
127 × 660.4 mm
Screw Diameter
127 mm diameter triple screw with 660.4 mm barrel length for high-volume continuous triple-colour bubble gum extrusion
450–500 kg/h
Capacity
450 to 500 kilogram per hour triple colour output for large-scale industrial bubble gum production lines
Double Jacketed
Type of Head
Double jacketed triple screw head for even heat distribution and precise gum mass temperature control throughout the barrel
15 kW Siemens
Motor Power
15 kilowatt Siemens Germany motor delivering high-torque drive for continuous triple screw extrusion at full capacity
20 kW
Inverter
20 kilowatt inverter for precise variable-speed control of the triple screw drive system at full 500 kg/h output
3 Step Germany
Step Gear
Three-step gear made by Germany for precision-grade power transmission, low noise, and extended service life at high loads
Mech. Rollers
Helping System
Mechanical roller helping system at the extruder output for consistent triple-colour gum rope sizing and smooth feed
5000 W
Heating Power
5000 watt heating power across the double jacketed barrel for precise and stable triple-screw gum mass temperature management

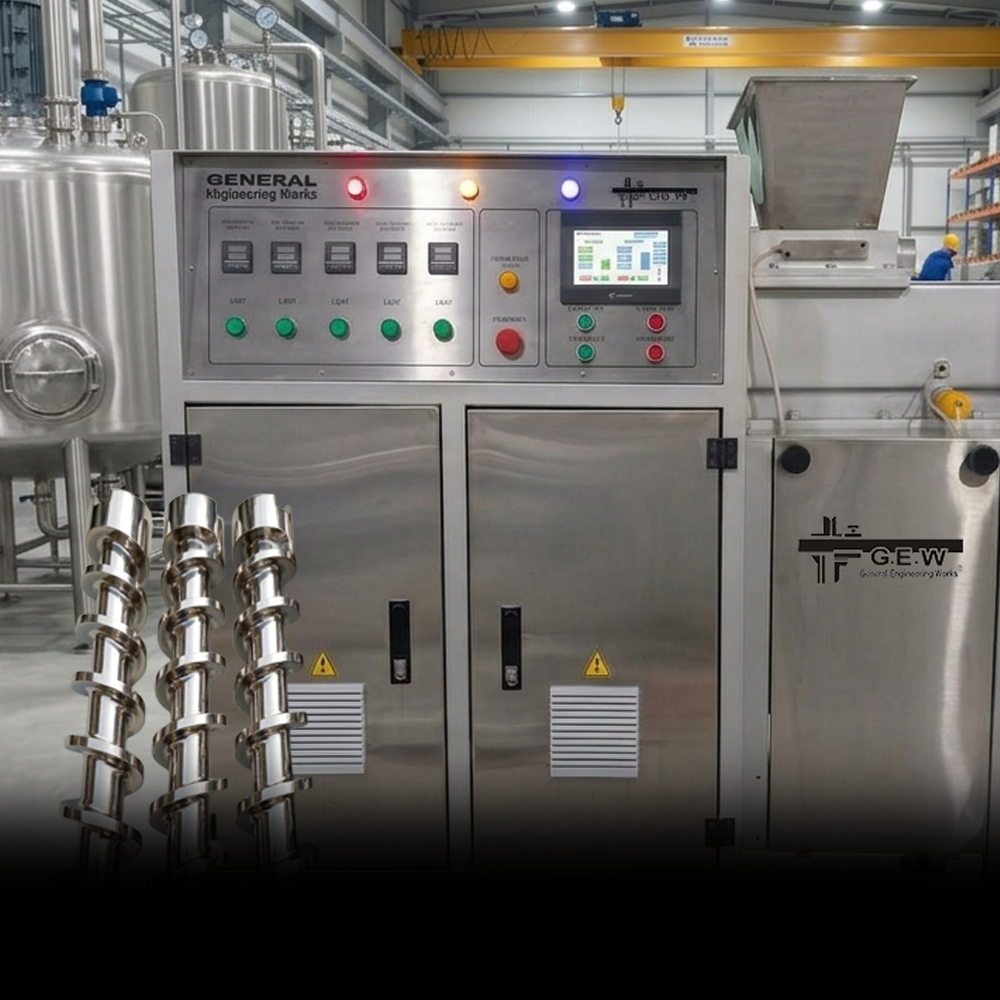

Triple Screw System & Drive
Triple screw.
Double jacketed.
The extruder is built around a 127 mm × 660.4 mm double jacketed triple screw delivering uniform mixing and consistent triple-colour gum output across all three screw channels. The Siemens Germany 15 kW motor with 20 kW inverter and three-step Germany gear delivers the high-torque, variable-speed drive required for reliable continuous extrusion at 450 to 500 kg per hour. The mechanical roller helping system ensures consistent output rope diameter at full production rate.
- 127 mm × 660.4 mm double jacketed triple screw for triple-colour output
- Siemens Germany 15 kW motor for high-torque continuous drive
- 20 kW inverter for full variable-speed control of the triple screw system
- Three-step Germany gear for precision power transmission at high loads
- 5000 W heating power across the double jacketed barrel
- Mechanical roller helping system for consistent triple-colour rope sizing
🇩🇪 Siemens Germany 15 kW
🇩🇪 3-Step Germany Gear
500 kg/h
Triple Colour Output
About This Machine
We are engaged in manufacturing high-performance GEW Bubble Gum Extruders designed for efficient and continuous gum production. Our extruder ensures smooth mixing, uniform texture, and consistent output quality. Built with heavy-duty stainless steel and precision-engineered screws, it delivers stable pressure and temperature control for perfect gum forming. The GEW Bubble Gum Extruder is easy to operate, energy-efficient, and ideal for medium to large-scale confectionery production lines.
General Engineering Works · Est. 1992 · www.generalengworks.com
500 kg/h
Triple Colour
127 mm
Triple Screw
15 kW
Siemens Germany
5000 W
Heating
Germany
3-Step Gear
How It Works
The extrusion process.
Five precision stages take raw bubble gum compound through triple screw extrusion to a perfectly formed triple-colour gum rope at up to 500 kg per hour.
01
Gum Loading
Raw bubble gum compounds for each colour channel are loaded into the extruder hopper. Feed rate is controlled through the 20 kW inverter managing the three screw speeds simultaneously.
02
Barrel Heating
The 5000 W heating system warms the double jacketed barrel to the precise temperature required for each gum colour channel, ensuring even mass temperature across all heating zones.
03
Triple Screw Extrusion
Three 127 mm × 660.4 mm screws driven by the Siemens Germany 15 kW motor through three-step Germany gear simultaneously push each colour channel of gum mass toward the triple die head.
04
Triple Colour Die Output
The three gum mass channels exit through the triple die head, co-extruded into a single rope with three distinct colour layers at the correct diameter for downstream forming.
Heating System & Safety
Double jacketed.
5000 W heat.
Totally safety covered.
The double jacketed barrel design maintains even gum mass temperature across the full 660.4 mm triple screw length. The 5000 W heating power provides precise zone-by-zone temperature control for each colour channel, while the mechanical roller helping system at the output ensures consistent triple-colour rope sizing at 450 to 500 kg per hour. Totally safety covers and a control panel with all new features are included as standard.
- Double jacketed barrel for even heat distribution across all three screw channels
- 5000 W heating for precise temperature management across the full barrel length
- Mechanical roller helping system for consistent triple-colour rope output sizing
- Totally safety covers as standard for safe continuous large-scale operation
- Control panel with all new features for full machine and colour channel management
5000 W
Barrel Heating Power
Applications
Where triple-colour extrusion matters.
Built for large-scale confectionery lines where triple-colour output, high-torque precision drive, and consistent gum rope quality are non-negotiable.
Triple Colour Bubble Gum
Purpose-built for triple-colour bubble gum extrusion, producing a consistent three-layer co-extruded rope at 450 to 500 kg per hour.
All Bubble Gum Types
Handles all types of bubble gum compound in any colour configuration, from single colour high-volume runs to full triple-colour output.
Filled Lollipop
The triple die head can be configured for co-extruded filled lollipop gum formats, feeding the downstream forming machine at full production speed.
Large-Scale Lines
At 500 kg/h with a Siemens Germany 15 kW motor and three-step Germany gear, the extruder is designed for continuous large-scale industrial confectionery production.
