BUBBLE GUM
EXTRUDER (TWIN SCREW)
350–400 kg/h capacity. Siemens Germany 11 kW. Heavy-duty Germany step gear.
Model GES3 M350_022 · 115 mm × 660.4 mm Twin Screw · Double Jacketed Head · 4000 W Heating · 1000 kg Approx
Twin screw. Double jacketed.
350–400 kg/h, all bubble gum types.

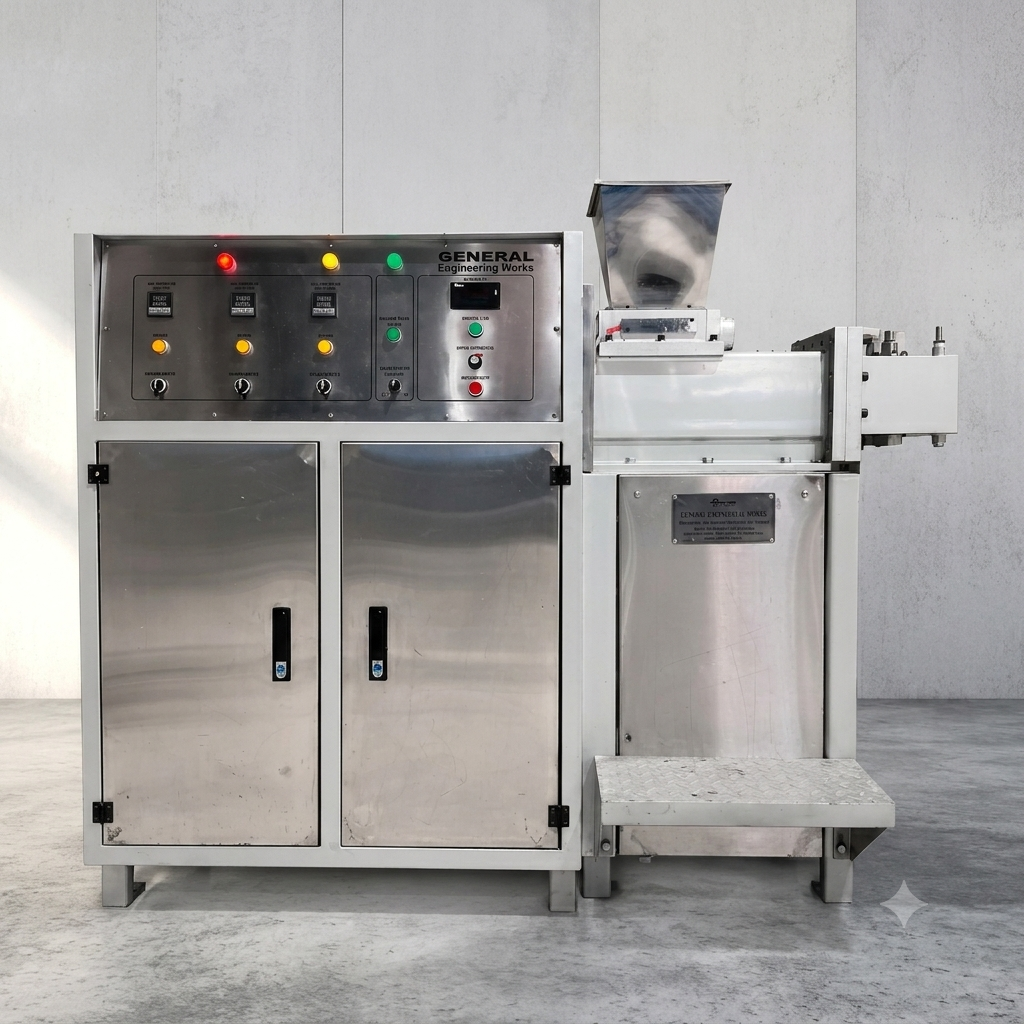

The GEW Bubble Gum Extruder (Twin Screw) is engineered for higher-throughput mixing, uniform texture, and consistent output across all types of bubble gum. Built with a 115 mm × 660.4 mm double jacketed twin screw, Siemens Germany 11 kW motor with 15 kW inverter, heavy-duty Germany step gear, and mechanical roller helping system, it delivers stable pressure and temperature control at 350 to 400 kg/h.
Machine Diagram
115 mm twin screw.
Double jacketed. Heavy-duty Germany gear.
Bubble Gum Extruder GES3 M350_022 · 115 mm × 660.4 mm Twin Screw · Double Jacketed Head · Siemens Germany 11 kW · Germany Step Gear · 4000 W Heating
Gum
Hopper
Hopper
Die
Head
Head
350–400 kg/h
Capacity
11 kW
Siemens Germany
15 kW
Inverter
4000 W
Heating
Feed ZoneMelt ZoneMixing ZoneDie Zone
Specifications
Twin screw precision.
Higher throughput, every detail engineered.
Full specification of the Bubble Gum Extruder GES3 M350_022, built for continuous, high-performance bubble gum extrusion at 350–400 kg/h.
Bubble Gum
Function
All types of bubble gum extrusion with smooth mixing, uniform texture, and consistent output quality
115 × 660.4 mm
Screw Diameter
115 mm diameter twin screw with 660.4 mm barrel length for high-volume continuous bubble gum extrusion
350–400 kg/h
Capacity
350 to 400 kilograms per hour capacity suitable for medium to large-scale bubble gum confectionery manufacturing lines
Double Jacketed / Twin Screw
Type of Head
Double jacketed twin screw head for even heat distribution and precise gum mass temperature control throughout the barrel
11 kW Siemens
Motor Power
11 kilowatt Siemens Germany motor delivering reliable high-torque drive for continuous twin screw extrusion
15 kW
Inverter
15 kilowatt inverter for precise variable-speed control of the twin screw drive system at full production output
Heavy Duty Germany
Step Gear
Heavy-duty gear system by Germany for precision-grade power transmission, low noise, and extended service life
Mech. Rollers
Helping System
Mechanical roller helping system at the output for consistent gum rope sizing and smooth feed into forming downstream
4000 W
Heating Power
4000 watt heating power across the double jacketed barrel for precise and stable gum mass temperature management
Screw System & Drive
115 mm twin screw.
Double jacketed.
Siemens Germany.
The extruder is built around a 115 mm × 660.4 mm double jacketed twin screw that provides even heat distribution and consistent gum mass flow throughout the barrel. The Siemens Germany 11 kW motor with 15 kW inverter and heavy-duty Germany step gear delivers the precision torque and variable-speed control needed for reliable continuous extrusion at 350–400 kg/h. The mechanical roller helping system ensures a consistent output rope diameter at every production run.
- 115 mm × 660.4 mm double jacketed twin screw for even heat and flow
- Siemens Germany 11 kW motor for high-torque continuous drive
- 15 kW inverter for full variable-speed control of the screw system
- Heavy-duty step gear made by Germany for precision power transmission
- 4000 W heating power across the double jacketed barrel
- Mechanical roller helping system for consistent output rope sizing
🇩🇪 Siemens Germany Motor
🇩🇪 Germany Step Gear
400 kg/h
Max Capacity
About This Machine
We are engaged in manufacturing high-performance GEW Bubble Gum Extruders designed for efficient and continuous gum production. Our twin screw extruder ensures smooth mixing, uniform texture, and consistent output quality at higher throughput. Built with heavy-duty stainless steel and precision-engineered screws, it delivers stable pressure and temperature control for perfect gum forming. The GEW Bubble Gum Extruder is easy to operate, energy-efficient, and ideal for medium to large-scale confectionery production lines.
General Engineering Works · Est. 1992 · www.generalengworks.com
350–400 kg/h
Capacity
115 mm
Screw Diameter
11 kW
Siemens Germany
4000 W
Heating
Germany
Step Gear
How It Works
The extrusion process.
Four precision stages take raw bubble gum compound from the hopper through twin screw extrusion and the mechanical roller system to a perfectly formed, temperature-correct gum rope.
01
Gum Loading
Raw bubble gum compound is loaded into the extruder hopper. The feed rate is controlled through the 15 kW inverter managing the twin screw speed.
02
Barrel Heating
The 4000 W heating system warms the double jacketed barrel to the precise temperature required, ensuring even gum mass temperature across all heating zones.
03
Twin Screw Extrusion
The 115 mm × 660.4 mm double jacketed twin screw driven by Siemens Germany 11 kW motor through the heavy-duty Germany step gear continuously pushes the gum mass through the barrel toward the die head.
04
Die Head Output
The gum mass exits through the die head at the correct diameter and shape for ball gum, bubble gum, or filled lollipop forming downstream.
Heating System & Safety
Double jacketed.
4000 W heat.
Totally safety covered.
The double jacketed barrel design maintains even gum mass temperature across the full 660.4 mm twin screw length. The 4000 W heating power provides precise zone-by-zone temperature control, while the mechanical roller helping system at the output ensures consistent rope sizing. The machine ships with totally safety covers as standard, and a control panel with all new features for complete operator management.
- Double jacketed barrel for even heat distribution along the full twin screw
- 4000 W heating power for precise gum mass temperature management
- Mechanical roller helping system for consistent output rope sizing
- Totally safety covers included as standard for safe continuous operation
- Control panel with all new features for full machine management
4000 W
Barrel Heating Power
Applications
Where precision gum extrusion matters.
Built for confectionery production lines where consistent gum extrusion output, precise temperature control, and high-torque German engineering are non-negotiable.
All Bubble Gum Types
Designed for all types of bubble gum, continuously extruding at the correct temperature and diameter for ball gum or bubble gum forming downstream.
Ball Gum Production
Delivers consistently sized and temperature-correct gum rope directly into ball gum forming machines at 350–400 kg/h continuous output.
Filled Lollipop
The gum extrusion system produces the inner gum fill for lollipops, co-extruded or separately fed into the lollipop forming line.
