General Engineering Works · Est. 1992
CUT AND WRAP
PACKING
MACHINE
Cut it clean. Wrap it fast. Every piece.

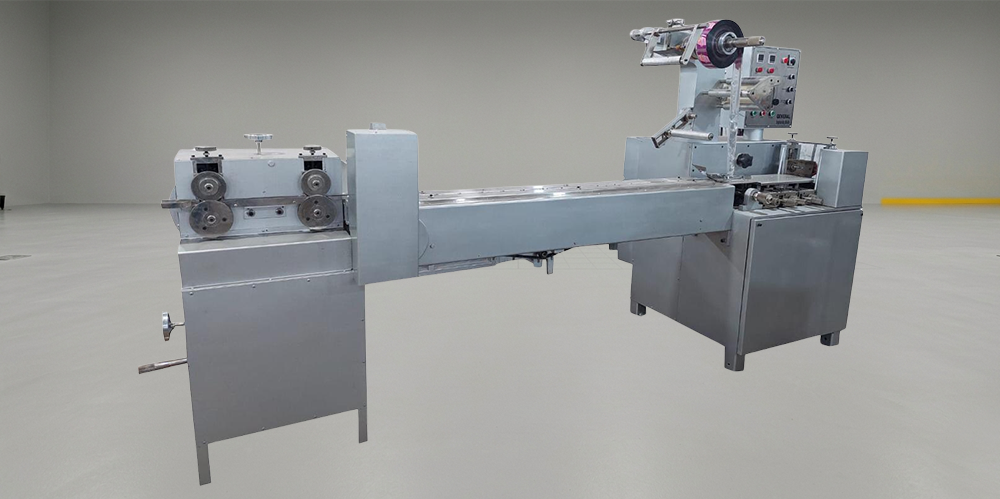

Model GES2_PC400_022
300–400 pcs/min.
Forming, cutting and wrapping.Every candy.
Every time.
The GES2_PC400_022 is a high-speed forming, cutting and wrapping machine for flow-pack products engineered specifically for chewing gum, hard and soft caramels, chewy candy and toffees with precision Siemens Germany drive motor.
System Overview
High-speed cut & wrap.
Precision every piece.
GES2_PC400_022 300–400 pcs/min · 1.5 kW Siemens Germany · 63–152 mm Film · 3000W Heating
Feed
Heat
Cut
Wrap
Out
400 pcs/min
Max Capacity
1.5 kW
Siemens Motor
63–152 mm
Film Size
3000W
Heating Power
800 kg
Machine Weight
Specifications
Built to cut.
Engineered to wrap.
Every specification reflects decades of experience in industrial confectionery machinery manufacturing.
Gum & Toffee
Using For
Bubble gum, toffee, hard/soft caramels and chewy candy wrapping
300–400 pcs/min
Production Capacity
High-speed output of 300 to 400 pieces per minute consistently
1.5 kW
Drive Motor
Siemens Germany precision drive motor for reliable, continuous operation
2.2 kW
Drive Inverter
Variable speed inverter for precise wrapping speed control
80 No.
Verm Gear
Worm gear number 80 for stable torque and smooth power transmission
63–152 mm
Film Size
Wide film range from 63 mm to 152 mm to suit all product sizes
10–65 mm
Product Width
Handles product widths from 10 mm to 65 mm with equal precision
63–254 mm
Product Length
Accommodates product lengths from 63 mm to 254 mm on one machine
50 No.
Photocell Gear
50-number photocell gear for precise film registration and alignment
3000 W
Heating Power
3000W heating system for consistent, reliable film sealing at high speed
~800 kg
Machine Weight
Approximately 800 kg robust, stable industrial-grade construction
Advanced
Control Panel
Modern control panel with all new features and full safety covers throughout
Function & Application
From rope sizing.
To a perfectly
wrapped piece.

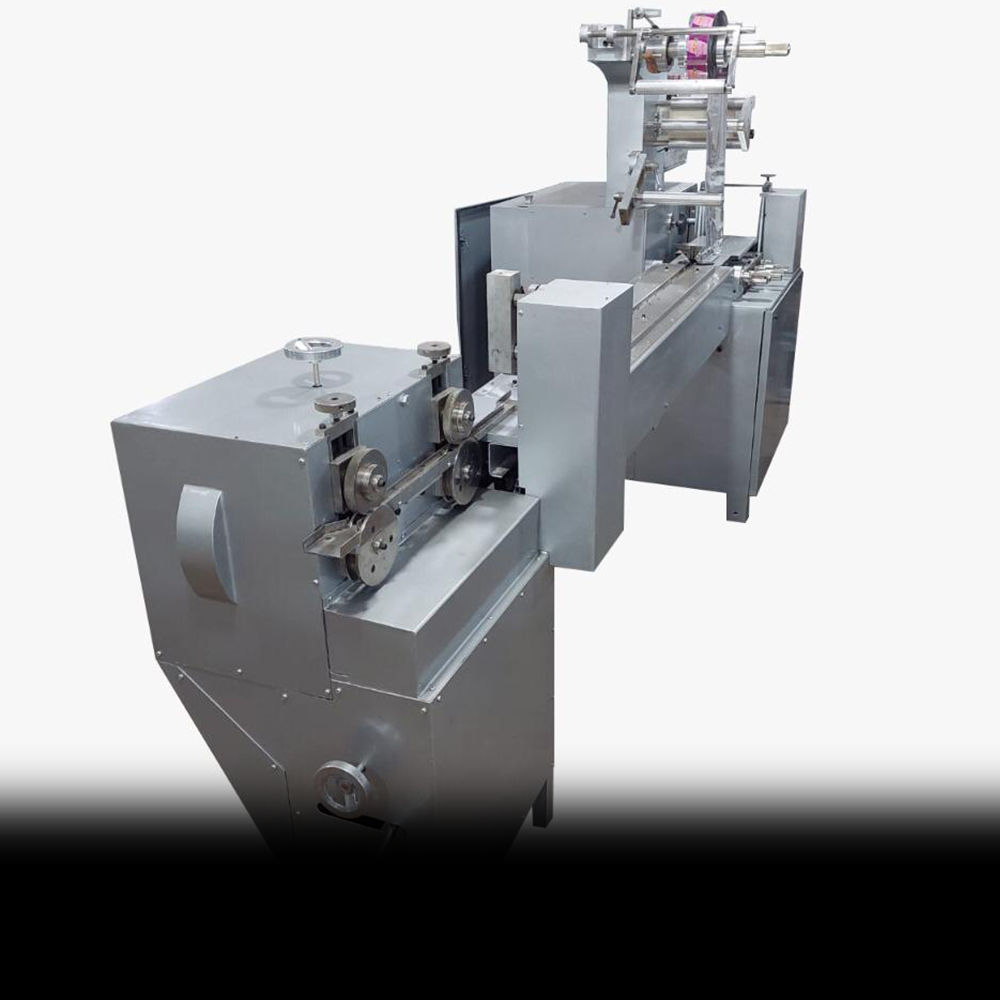

The GES2_PC400_022 is a high-speed forming, cutting and wrapping machine for flow-pack products designed specifically to handle chewing gum, hard and soft caramels, chewy candy and toffees. Mates directly with rope sizing machines or extruders and cooling tunnels for seamless line integration.
- Bubble gum, toffee, caramel and chewy candy primary applications
- 300–400 pcs/min high-speed output for continuous production
- Mates with rope sizer, extruder or cooling tunnel for full line integration
- 63–254 mm product length range wide product size compatibility
400/min
Max Wrapping Speed
About This Machine
This is a high-speed forming, cutting and wrapping machine for products in flow packs. It has been designed specifically to handle chewing gum, hard and soft caramels, chewy candy, and toffees by mating with either a rope sizing machine or extruder and cooling tunnel.
General Engineering Works · Est. 1992
400 pcs/min
Max Capacity
Siemens
Motor Brand
63–152 mm
Film Size Range
3000 W
Heating Power
~800 kg
Machine Weight
How It Works
The cut & wrap process.
Four precision stages take raw product to a perfectly cut and wrapped piece consistent quality, every time.
01
Product Feed
Rope-sized or extruded gum or candy is fed into the machine the photocell gear system aligns each piece precisely for cutting and wrapping.
02
Film Heat & Feed
The 3000W heating system activates film sealing while the variable film feed (63–152 mm) delivers the correct wrap size for every product.
03
Cut & Form
The Siemens-driven worm gear (No. 80) system cuts and forms each piece at up to 400 pcs/min with consistent, clean precision every cycle.
04
Wrapped & Out
Each piece exits perfectly cut and wrapped in flow pack ready for secondary packaging, purity and freshness fully preserved.
Construction & Drive
Siemens motor.
German precision.
Pakistani build.
The GES2_PC400_022 is powered by a Siemens Germany 1.5 kW drive motor paired with a 2.2 kW inverter and worm gear number 80 for stable, smooth torque at every speed. At approximately 800 kg, this machine is built heavy and solid designed for years of continuous high-speed industrial operation.
- 1.5 kW Siemens Germany drive motor trusted precision engineering
- Worm gear No. 80 for stable torque and smooth power transmission
- 2.2 kW inverter for variable-speed wrapping control
- Full safety covers over all moving components industrial compliant
Siemens Germany
Drive Motor Brand
Applications
Where precision cut & wrap matters.
Serving industries where consistent wrap quality, flow-pack integrity, and high-speed output are non-negotiable.
Chewing Gum
Purpose-built for chewing gum flow-pack wrapping mates directly with rope sizer or extruder and cooling tunnel.
Hard & Soft Caramels
Handles hard and soft caramels with equal precision consistent cut and wrap at up to 400 pcs/min.
Chewy Candy & Toffee
Engineered specifically for chewy candy and toffee reliable performance on the stickiest confectionery products.
Production Lines
Integrates with rope sizing machines, extruders and cooling tunnels for seamless, full confectionery line operation.
Ready to order?
Get in touch with our engineering team for a custom quote, film size specifications, or full technical details.
