FIVE STEP
COOLING
TUNNEL
Cool it down, floor by floor. Lock in the quality.

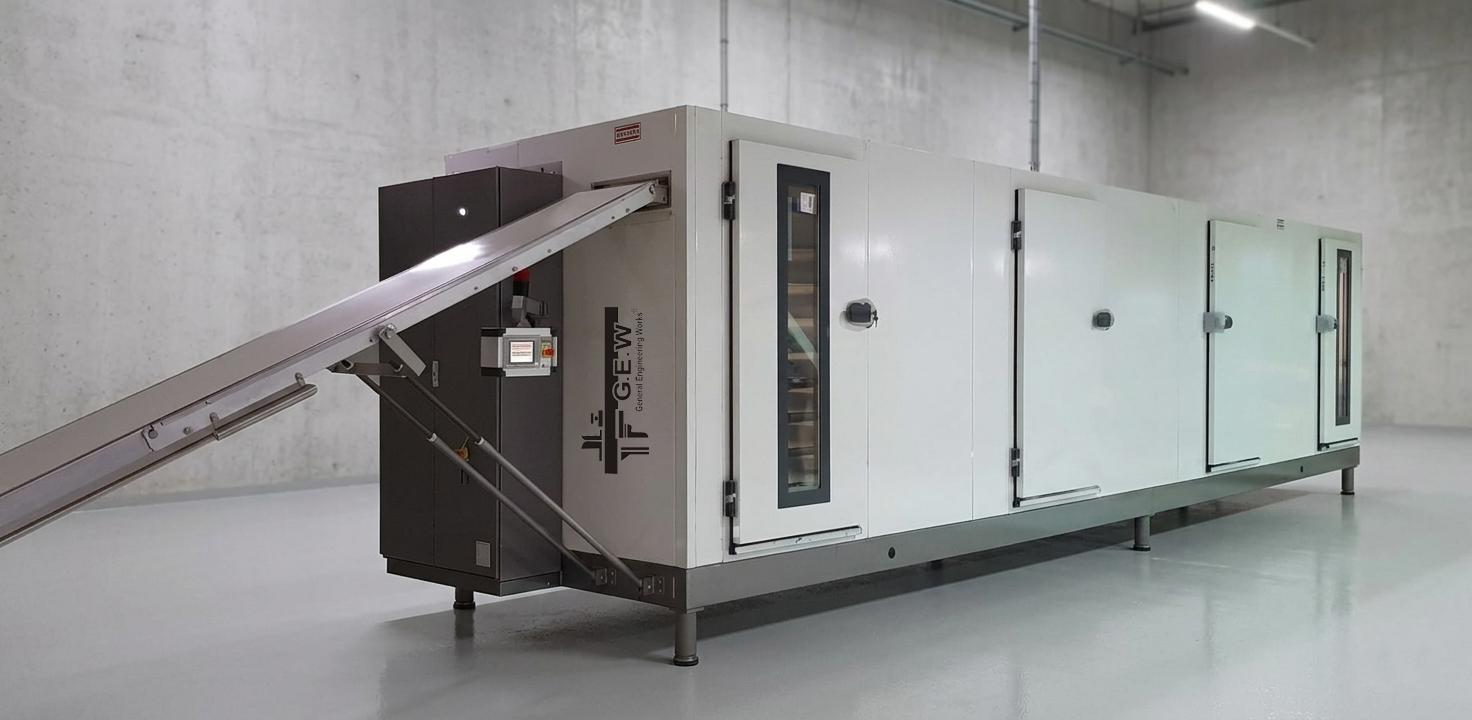

Model GES02_MN168_025
Five floors of cooling. Maximum dwell time.
Every center-filled piece, stable.
The GES02_MN168_025 is a high-capacity five-floor refrigerated cooling tunnel engineered for center-filled bubble gum and candy — built to maintain consistent product quality even in hot and humid conditions above 25°C / 77°F.
Specifications
Built to perform.
Engineered to last.
Every specification reflects decades of experience in industrial confectionery machinery manufacturing.
Five Floor
Tunnel Floors
Five-floor configuration for extended cooling path in a compact footprint
660×4875 mm
Mesh Belt Size
Wide-format belt for high-volume product throughput per pass
SS 304 FG
Mesh Belt Material
Food-grade stainless steel 304 for hygienic, corrosion-resistant operation
5.5 kW
Drive Gear Motor
Efficient gear motor for smooth, continuous belt movement across all five floors
5.5 kW
Drive Gear Inverter
Variable speed inverter for precise belt speed control
10 Ton
AC Capacity
10-ton low-temperature air conditioning for powerful, reliable cooling
2.2 kW
AC Inverter
Dedicated inverter for precise temperature and cooling zone control
Thermocol
Insulation
Duct system double covered with Thermocol sheet insulation for heat-lock efficiency
Advanced
Control Panel
Modern control panel with all new features for full operational control

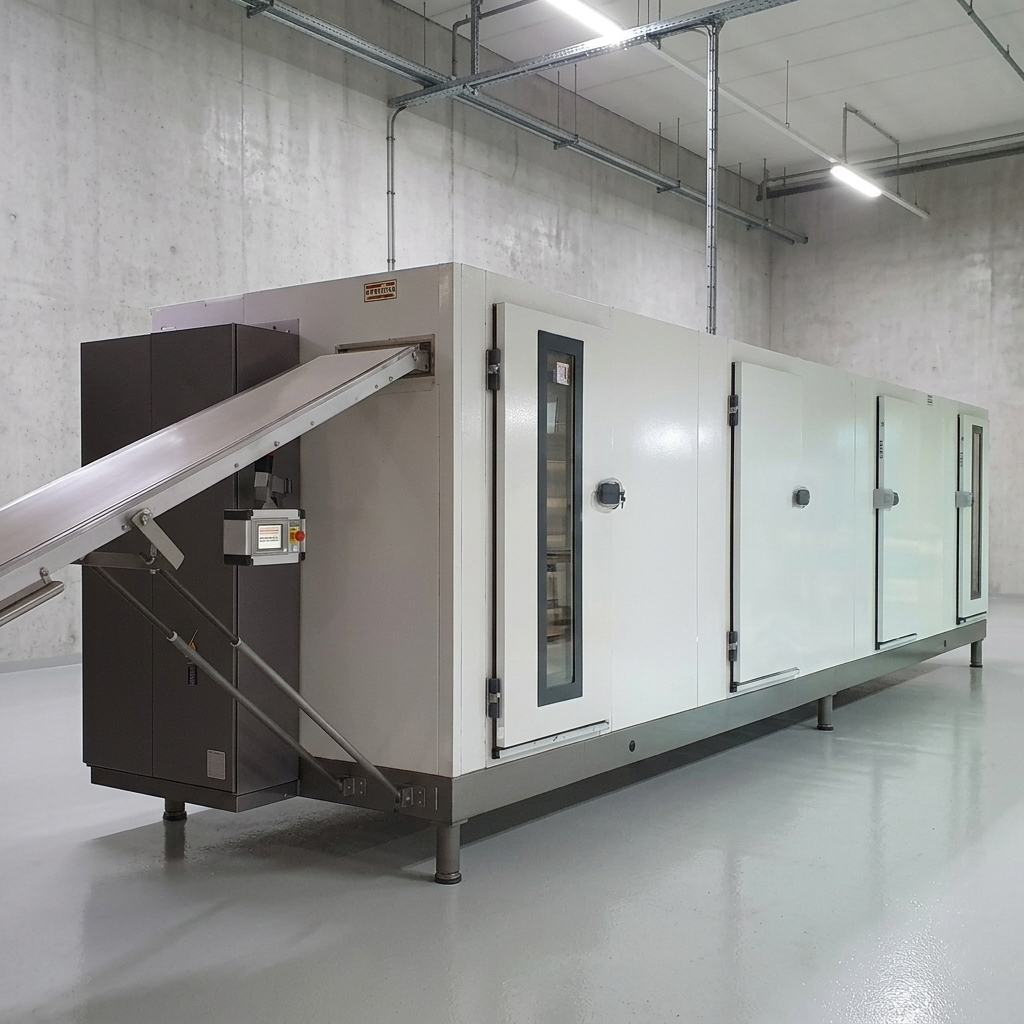

Function & Application
From forming line.
To perfectly
cooled product.
The GES02_MN168_025 cooling tunnel is purpose-built for center-filled bubble gum and all types of hard candies and confectionery products requiring controlled cooling before packaging. Its five-floor conveyor design maximises dwell time while keeping the production floor footprint minimal.
- Center-filled bubble gum and candy primary application
- Five-floor mesh belt path for maximum cooling dwell time
- Operates effectively in ambient temperatures above 25°C / 77°F
- Food-grade SS 304 belt for hygienic, wash-down-ready operation
10 Ton
AC Cooling Capacity
About This Machine
Compact, high-capacity five-floor cooling conveyor and tunnel — well suited for all types of center-filled bubble gum, hard candies, and food products requiring sufficient cooling prior to packaging. The large-capacity cooling system and efficient insulated enclosure makes it effective in hot and humid conditions where the ambient temperature is above 25°C / 77°F.
General Engineering Works · Est. 1992
5
Cooling Floors
660 mm
Belt Width
4875 mm
Belt Length
10 Ton
AC Capacity
SS 304
Belt Grade
Construction & Insulation
Sealed cold.
Built for heat.
The GES02_MN168_025 is engineered for demanding environments. The duct system, double covered with Thermocol sheet insulation, traps cold air inside the enclosure, while a 10-ton low-temperature AC system drives refrigeration across all five belt floors. Built for factories where ambient temperature is never ideal.
- Duct double covered with Thermocol sheet for maximum cold retention
- 10-ton low-temperature AC unit for powerful refrigeration
- Fully enclosed structure — effective in hot and humid climates
- Control panel with all new features for modern operation
Double Thermocol
Insulation System
Applications
Where controlled cooling matters.
Serving industries where consistent product temperature before packaging is non-negotiable.
Center-Filled Gum
Primary application — rapid, controlled cooling of filled bubble gum products before packaging.
Hard Candies
Well-suited for all types of hard candy products requiring sufficient cooling prior to wrapping and packaging.
Hot Climate Factories
Effective in ambient temperatures above 25°C / 77°F — designed for South Asian and tropical production environments.
Production Lines
Integrates seamlessly into any mid-to-large scale confectionery manufacturing and packaging workflow.
