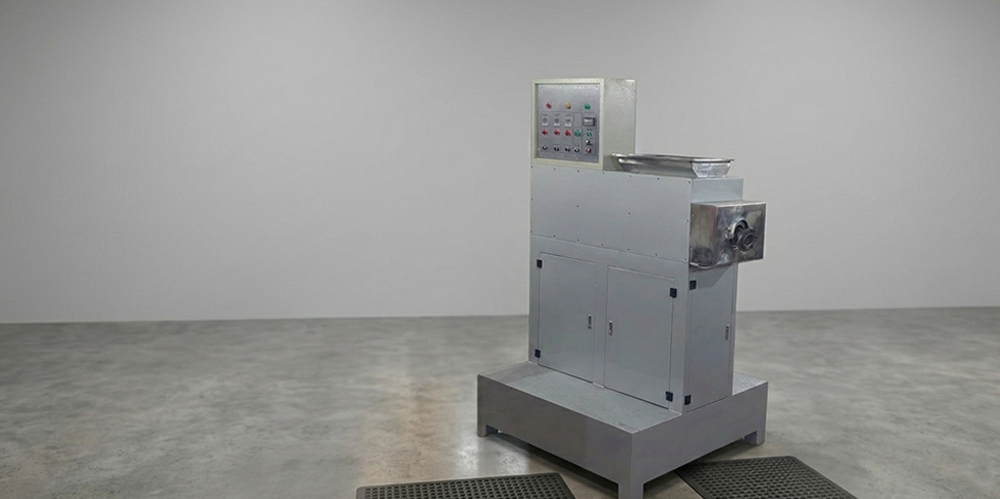

LOLLIPOP GUM
FILLING
EXTRUDER
200–250 kg/h. Twin screw. Germany three-step gear.
Model GUM FILLER · 100 mm × 660.4 mm Double Jacketed Twin Screw · SEW 7.5 kW · 3-Step Germany Gear
Twin screw precision.
Ball gum. Bubble gum. Filled lollipop.
The Lollipop Gum Filling Extruder is manufactured using high-grade raw materials and engineered for ball gum, bubble gum, and filled lollipop production. With a 100 mm double jacketed twin screw, SEW 7.5 kW gear motor, three-step Germany gear, and a mechanical roller helper system, it delivers 200 to 250 kg per hour of consistent, high-quality gum extrusion output.
Machine Diagram
100 mm twin screw.
Double jacketed. 4 heat zones.
Lollipop Gum Filling Extruder · 100 mm × 660.4 mm Twin Screw · SEW 7.5 kW · 3-Step Germany Gear · 200–250 kg/h
Gum
Hopper
Hopper
Die
Head
Head
Mechanical
Rollers Helper
Rollers Helper
200–250 kg/h
Capacity
100 mm
Screw Diameter
Twin Screw
Double Jacketed
7.5 kW SEW
Gear Motor
Germany
3-Step Gear
Specifications
Twin screw precision.
Every detail engineered.
Full specification of the Lollipop Gum Filling Extruder, built for continuous ball gum, bubble gum, and filled lollipop extrusion at industrial output.
Gum Filler
Function
Gum filling extrusion for ball gum, bubble gum, and filled lollipop production lines
100 × 660.4 mm
Screw Diameter
100 mm diameter twin screw with 660.4 mm barrel length for high-volume continuous gum extrusion
Twin Screw
Double Jacketed
Double jacketed twin screw design for even heat distribution and precise gum mass temperature control throughout the barrel
7.5 kW SEW
Gear Motor Power
7.5 kilowatt SEW Germany gear motor delivering reliable high-torque drive for continuous twin screw extrusion
10 kW
Inverter Power
10 kilowatt inverter for precise variable-speed control of the twin screw drive system at full production output
3 Step Germany
Step Gear
Three-step gear made in Germany for precision-grade power transmission, low noise, and long service life
200–250 kg/h
Capacity
200 to 250 kilogram per hour continuous output for industrial-scale gum and lollipop filling production
3000 kW
Heating Power
3000 kilowatt heating power across the double jacketed barrel for precise and uniform gum mass temperature management
Mechanical Rollers
Helper System
Mechanical roller helper system assists product flow and sizing at the extruder output for consistent extrusion diameter

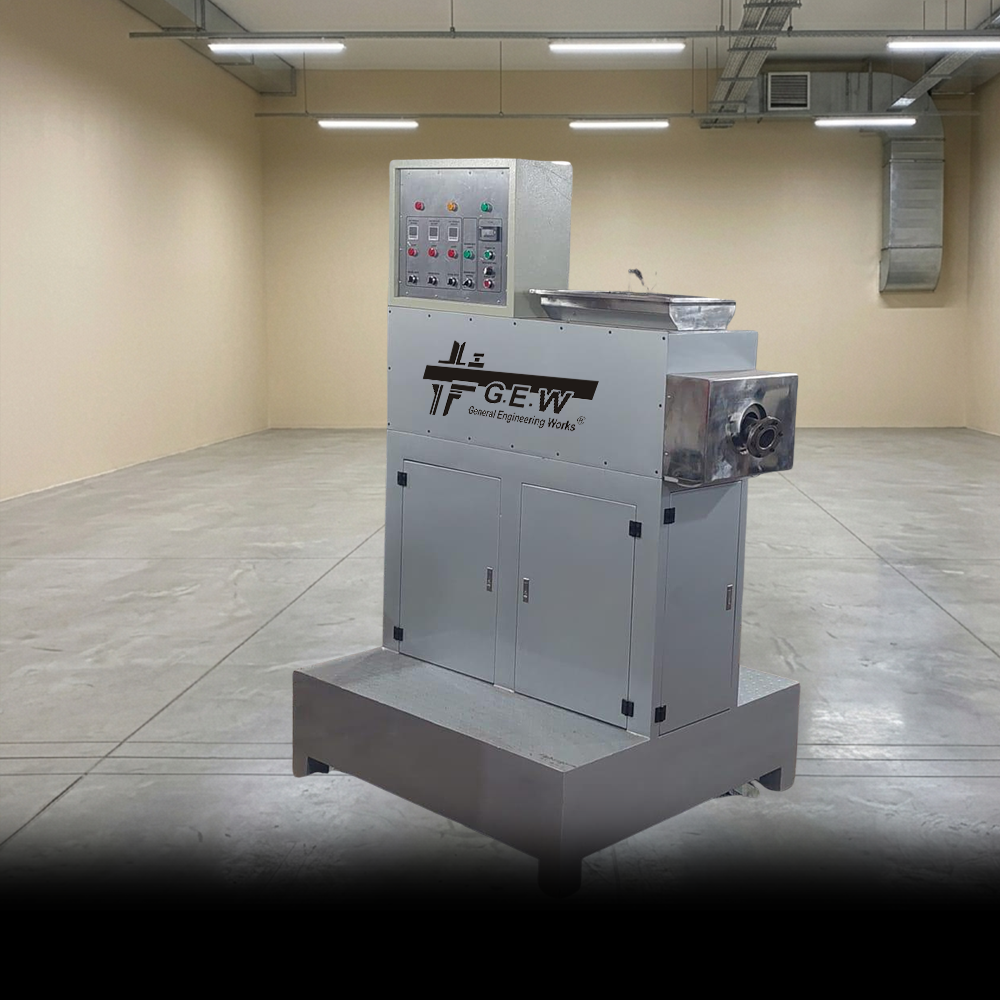

Screw System & Drive
100 mm twin screw.
Double jacketed.
SEW Germany power.
The extruder is built around a 100 mm × 660.4 mm double jacketed twin screw that provides even heat distribution and consistent gum mass flow throughout the barrel. The SEW 7.5 kW Germany gear motor with 10 kW inverter and three-step Germany gear delivers the precision torque and variable-speed control needed for reliable continuous extrusion at 200 to 250 kg per hour.
- 100 mm × 660.4 mm double jacketed twin screw for even heat and flow
- SEW Germany 7.5 kW gear motor for high-torque continuous drive
- 10 kW inverter for full variable-speed control of the screw system
- Three-step Germany gear for precision power transmission
- 3000 kW heating power across the double jacketed barrel
- Mechanical roller helper system for consistent output diameter
🇩🇪 SEW Germany Motor
🇩🇪 3-Step Germany Gear
250 kg/h
Maximum Capacity
About This Machine
The Lollipop Gum Filling Extruder is manufactured using high-grade raw materials and is widely used for making ball gum and bubble gum. Our range is widely demanded in the market and is renowned for its excellent loading capacity, durability, and performance. The double jacketed twin screw design ensures even gum mass temperature and consistent extrusion output across every production run.
General Engineering Works · Est. 1992
200–250 kg/h
Capacity
100 mm
Screw Diameter
7.5 kW SEW
Gear Motor
10 kW
Inverter
Germany
3-Step Gear
How It Works
The extrusion process.
Five precision stages take raw gum mass from the hopper through twin screw extrusion and the mechanical roller helper system to a perfectly formed, filling-ready output.
01
Gum Mass Loading
Raw ball gum or bubble gum mass is loaded into the extruder hopper. The feed rate is controlled through the 10 kW inverter managing the twin screw speed.
02
Barrel Heating
The 3000 kW heating system warms the double jacketed barrel to the precise temperature required for the gum compound, ensuring even mass temperature across all four heat zones.
03
Twin Screw Extrusion
The 100 mm × 660.4 mm double jacketed twin screws driven by the SEW 7.5 kW gear motor through three-step Germany gear continuously push and mix the gum mass through the barrel toward the die head.
04
Die Head Output
The gum mass exits through the die head at the correct diameter and shape for ball gum, bubble gum, or filled lollipop forming, shaped to the product specification.
Heating System & Helper Rollers
Double jacketed.
3000 kW heat.
Mechanical rollers.
The double jacketed barrel design ensures the gum mass temperature is maintained evenly across the full 660.4 mm screw length. The 3000 kW heating power provides precise zone-by-zone temperature control, while the mechanical roller helper system at the output ensures the extruded rope is consistently sized and smoothly fed to the forming machine without interruption.
- Double jacketed barrel for even heat distribution along the full screw length
- 3000 kW heating power for precise gum mass temperature management
- Four heating zones across the barrel length for zone-by-zone control
- Mechanical roller helper system for consistent rope sizing at output
- Control panel with all new features for full machine operation
3000 kW
Barrel Heating Power
Applications
Where precision gum extrusion matters.
Built for confectionery production lines where consistent gum extrusion output, precise temperature control, and high throughput are non-negotiable.
Ball Gum Production
Continuously extrudes gum mass at the correct diameter and temperature for ball gum forming machines downstream at 200 to 250 kg per hour.
Bubble Gum
Handles bubble gum compound with precise barrel heat zone control, delivering consistently textured extruded rope for all bubble gum formats.
Filled Lollipop
The gum filling extrusion system produces the inner gum fill for lollipops, co-extruded or separately fed into the lollipop forming line.
High-Volume Lines
At up to 250 kg per hour with a twin screw drive, the extruder supports high-volume continuous confectionery production with minimal downtime.
