STICK BUBBLE
GUM LINE
Complete integrated line. Press, mold, convey. Every stick, perfect.
Model GELS 168_026 · Stick Bubble Gum · 0.75 kW × 3 + 1.5 kW × 5 + 1.5 kW × 1 Gear Motors · 3500 kg Approx

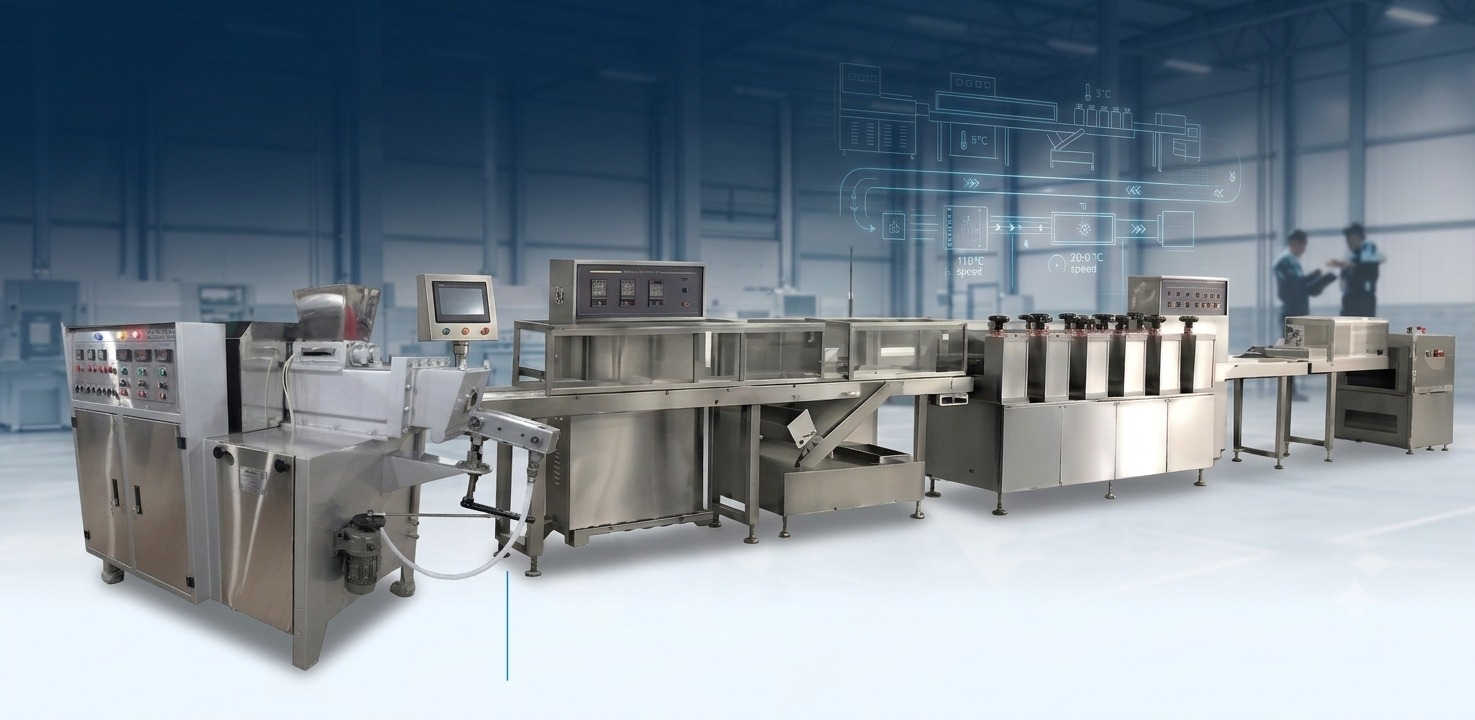

Stick Bubble Gum Line GELS 168_026
Complete stick gum line.
Press. Mold. Convey. Done.
The Stick Bubble Gum Line GELS 168_026 is a complete and integrated solution for manufacturing high-quality stick chewing gum with precise thickness, uniform shape, and consistent weight. The line includes rest conveyors, press roller sets, mold roller sets, and multiple drive gear motors with 2.2 kW inverters, engineered for stable operation, high output, and minimal material wastage.
Production Line Layout
Eight stations.
One complete stick gum line.
Stick Bubble Gum Line GELS 168_026 · Rest Conveyors · Press Roller Set · Mold Roller Set · 0.75 kW × 3 + 1.5 kW × 6 · 2.2 kW Inverters × 6 · 3500 kg
8 ft
Rest Conveyor
0.75 kW
0.75 kW
→
5 ft
Press Roller
Bracket 1.5 kW
Bracket 1.5 kW
→
5 ft
Press Roller
Area
Area
→
6 ft
Rest Conveyor
0.75 kW
0.75 kW
→
2 ft
Mold Roller
1.5 kW
1.5 kW
→
6 ft
Mold Rollers
Area
Area
→
6 ft
Rest Conveyor
0.75 kW
0.75 kW
→
2.2 kW
Drive Inverters
× 6 pcs
× 6 pcs
8 Stations
Complete Line
0.75 kW × 3
Conveyor Motors
1.5 kW × 5
Press Roller Motors
1.5 kW × 1
Mold Roller Motor
3500 kg
Weight Approx
Specifications
Every station.
Every spec.
Complete specification for all stations of the Stick Bubble Gum Line GELS 168_026, from the first rest conveyor to the mold roller set and drive inverters.
Stick Gum
Function
Complete production line for stick bubble gum with precise thickness, uniform shape, and consistent weight from raw material to finished product
8 ft + 6 ft + 6 ft
Rest Conveyors
Three rest conveyors: 8 ft inlet, 6 ft mid, and 6 ft exit, each driven by a 0.75 kW gear motor (3 pcs total)
5 ft + 5 ft
Press Roller Set
Press roller set with bracket system at 5 ft and press roller set area at 5 ft, driven by 1.5 kW gear motor (5 pcs)
2 ft + 6 ft
Mold Roller Set
Mold roller set at 2 ft with 6 ft mold rollers area, driven by 1.5 kW gear motor (1 pc) for precise stick gum scoring and sizing
0.75 kW × 3
Conveyor Gear Motors
Three 0.75 kilowatt drive gear motors for the three rest conveyors along the full line length
1.5 kW × 5
Press Roller Motors
Five 1.5 kilowatt drive gear motors powering the press roller set with bracket system for consistent gum slab compression
1.5 kW × 1
Mold Roller Motor
One 1.5 kilowatt drive gear motor for the mold roller set, delivering precise gum stick scoring and cutting at full line speed
2.2 kW × 6
Drive Inverters
Six 2.2 kW drive inverters providing independent variable-speed control for every motorised station across the full line
3500 kg
Weight of Line
Approximately 3500 kg total line weight. All equipment manufactured with food-grade stainless steel construction
Drive System & Line Layout
Nine motors.
Six inverters.
One complete line.
The Stick Bubble Gum Line runs nine independent gear motors across three station types. Three 0.75 kW motors drive the rest conveyors, five 1.5 kW motors power the press roller set with bracket system, and one 1.5 kW motor drives the mold roller set. All nine stations are managed through six 2.2 kW inverters for independent variable-speed control at every stage.
- 0.75 kW gear motor × 3 for the 8 ft, 6 ft, and 6 ft rest conveyors
- 1.5 kW gear motor × 5 for the press roller set with bracket system
- 1.5 kW gear motor × 1 for the 2 ft mold roller set
- 2.2 kW drive inverters × 6 for full independent speed control per station
- Food-grade stainless steel construction throughout the full line
✨ Food-Grade SS Construction
🎛️ 6 Independent Inverters
🍬
9
Independent Drive Motors
About This Line
The Stick Gum Line by GEW is a complete and integrated solution for manufacturing high-quality stick chewing gum with precise thickness, uniform shape, and consistent weight. The line includes mixing, extrusion, sheeting, scoring, cutting, cooling, and wrapping systems, ensuring smooth production flow from raw material to finished packed product. It is engineered for stable operation, high output, and minimal material wastage. All equipment is manufactured with food-grade stainless steel construction, providing hygiene, durability, and long-term industrial performance.
General Engineering Works · Est. 1992 · www.generalengworks.com
8 Stations
Complete Line
9 Motors
Independent Drive
6 Inverters
2.2 kW Each
SS Construction
Food Grade
3500 kg
Weight Approx
How It Works
The stick gum forming process.
Six precision stages take gum compound from the inlet conveyor through pressing, molding, and conveying to finished stick gum output ready for wrapping or packaging.
01
Inlet Conveyor
Gum compound slab enters the line on the 8 ft rest conveyor, driven by a 0.75 kW gear motor with 2.2 kW inverter controlling the feed rate into the press roller set.
02
Press Rolling
The 5 ft press roller set with bracket system, driven by five 1.5 kW gear motors, compresses the gum slab to the precise thickness required for stick gum production across the 5 ft press roller area.
03
Mid Conveyor
The 6 ft mid rest conveyor with 0.75 kW motor transfers the pressed gum sheet from the press roller area to the mold roller set at consistent, inverter-controlled speed.
04
Mold Rolling
The 2 ft mold roller set, driven by a 1.5 kW gear motor, scores and cuts the gum sheet into individual stick shapes across the 6 ft mold rollers area at consistent dimensions and weight.
05
Exit Conveyor
The 6 ft exit rest conveyor with 0.75 kW motor carries finished cut stick gum pieces to the output end of the line at full production speed.
06
Stick Gum Output
Finished stick gum pieces with precise thickness, uniform shape, and consistent weight exit the line ready for cooling, wrapping, or packaging downstream.
Construction & Food Safety
Food-grade SS.
Hygiene throughout.
Long-term durability.
All equipment on the Stick Bubble Gum Line is manufactured with food-grade stainless steel construction. Every surface in contact with the gum slab from the first rest conveyor through the press roller and mold roller sets meets food-grade hygiene standards, providing durability and long-term industrial performance with minimal maintenance across continuous production runs.
- Food-grade stainless steel construction on all gum-contact surfaces
- Press roller set with bracket system for precise slab thickness control
- Mold roller set for consistent stick scoring and weight across the full sheet
- Six 2.2 kW inverters for independent speed adjustment at every station
- Engineered for stable operation, high output, and minimal material wastage
✨
Food Grade
SS Construction
Applications
Where precision stick gum forming matters.
Built for confectionery production lines where consistent slab thickness, precise stick scoring, food-grade construction, and full-line speed management are non-negotiable.
Stick Bubble Gum
Purpose-built for stick bubble gum production, delivering uniform thickness, consistent weight, and precise stick dimensions from a single integrated line.
Custom Stick Sizes
The mold roller set and press roller bracket system can be configured for different stick gum dimensions and weight specifications on the same line.
Pre-Wrapping Lines
Exit conveyor delivers finished cut stick gum pieces directly into fold wrap or flow pack packaging machines downstream at consistent output.
Pre-Packaging Stage
Finished stick gum output feeds directly to counting, wrapping, or box packing machines, completing the full production line from compound to packaged product.
