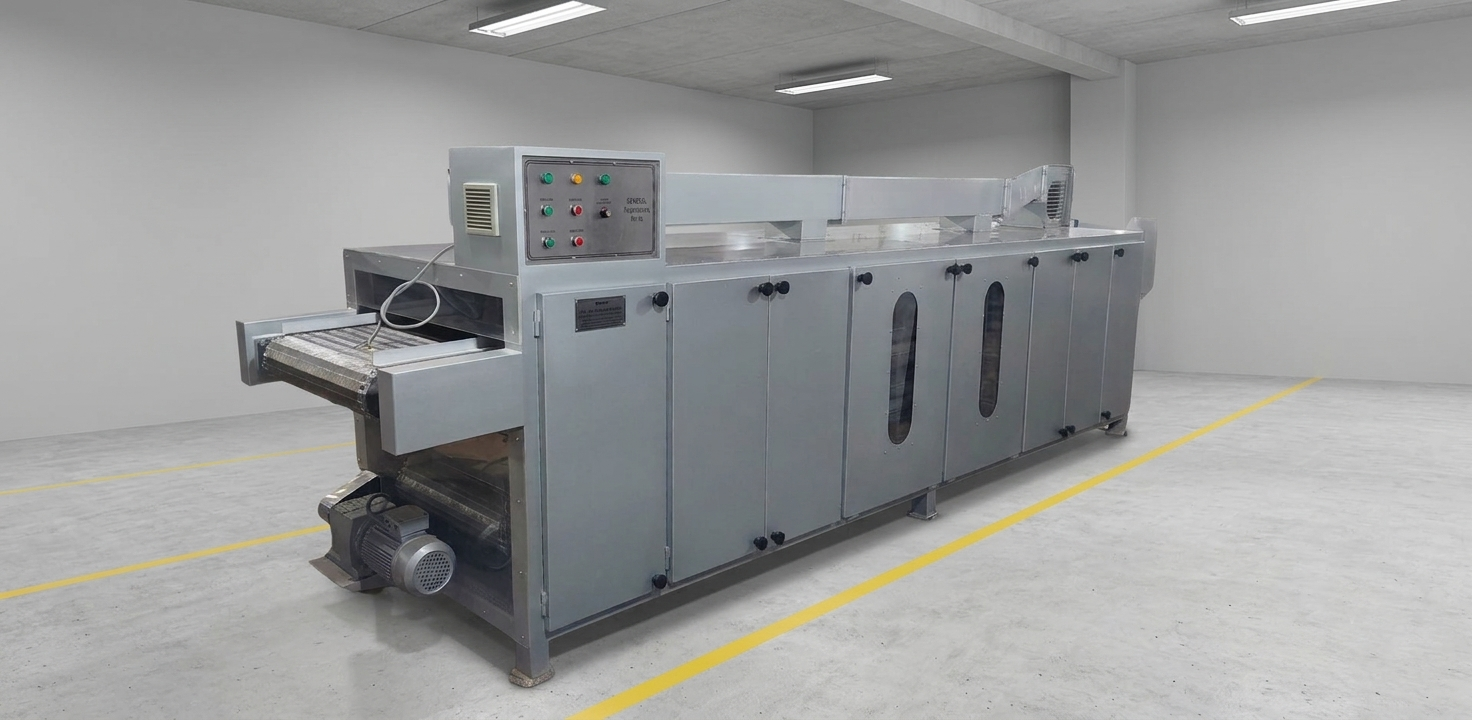

THREE STEP
COOLING
CONVEYOR
Three floors. All types of bubble gum. Totally covered with MS sheet.
Model GES_02_MN167_022 · Three Floors · 2 mm Food Grade Belt · 3000 kg Approx · Air Blower with Fans
Three floors of even cooling.
Built for all types of bubble gum.
The Three Step Cooling Conveyor is designed for all types of bubble gum cooling. Three floors carry product along a single 660 mm × 4875 mm belt run, driven by a 2.2 kW motor with 3 kW inverter, with a dedicated 3 kW air blower feeding fans across all three stages. Totally covered with MS sheet with a 2 mm food-grade belt.
Conveyor Layout
Three floors.
Alternating belt direction. Air blower with fans.
Three Step Cooling Conveyor GES_02_MN167_022 · Three Floors · 2 mm Food Grade Belt · 2.2 kW Motor · 3 kW Inverter · 3 kW Air Blower
3
→
2
←
1
→
🌀
Fan
🌀
Fan
🌀
Fan
🤍 2 mm Food Grade Belt · Totally Covered with MS Sheet
3 Floors
Bubble Gum
2.2 kW
Motor Power
3 kW
Inverter
3 kW
Air Blower
3000 kg
Weight Approx
Specifications
Three floors.
Every detail engineered.
Full specification of the Three Step Cooling Conveyor, model GES_02_MN167_022, built for all types of bubble gum cooling.
Bubble Gum
Function
All types of bubble gum cooling across three floors with continuous air blower fan system
Three Floors
Floors
Three cooling stages along one continuous belt run for gradual, even temperature drop
2.2 kW
Motor Power
2.2 kilowatt drive motor powering smooth, continuous belt operation
3 kW
Inverter
3 kilowatt inverter for full variable-speed belt control
3 kW
Air Blower
3 kilowatt air blower feeding fans evenly across all three cooling stages
W 660 mm
Belt Width
Wide 660 mm belt for high-volume throughput
L 4875 mm
Belt Length
4.875 metre belt run across three cooling stages
2 mm FG
Belt Material
2 mm food-grade belt, safe for direct product contact
3000 kg
Weight Approx
Approximately 3000 kg total machine weight. Totally covered with MS sheet. Control panel with all new features included
Construction & Drive System
Three floors.
One drive system.
Total MS coverage.
The conveyor runs on a 2.2 kW motor with a 3 kW inverter for precise belt speed control, while a dedicated 3 kW air blower feeds fans across all three floors. Totally covered with MS sheet for full dust protection, with a 2 mm food-grade belt for hygienic bubble gum contact.
- Three floors along one continuous 4875 mm belt run
- 2.2 kW motor with 3 kW inverter for belt speed control
- 3 kW air blower feeding fans across all three stages
- 2 mm food-grade belt for hygienic gum contact
- Totally covered with MS sheet for full product protection
🤍 2 mm Food Grade Belt
🏗️ Totally Covered MS Sheet
3
Cooling Floors

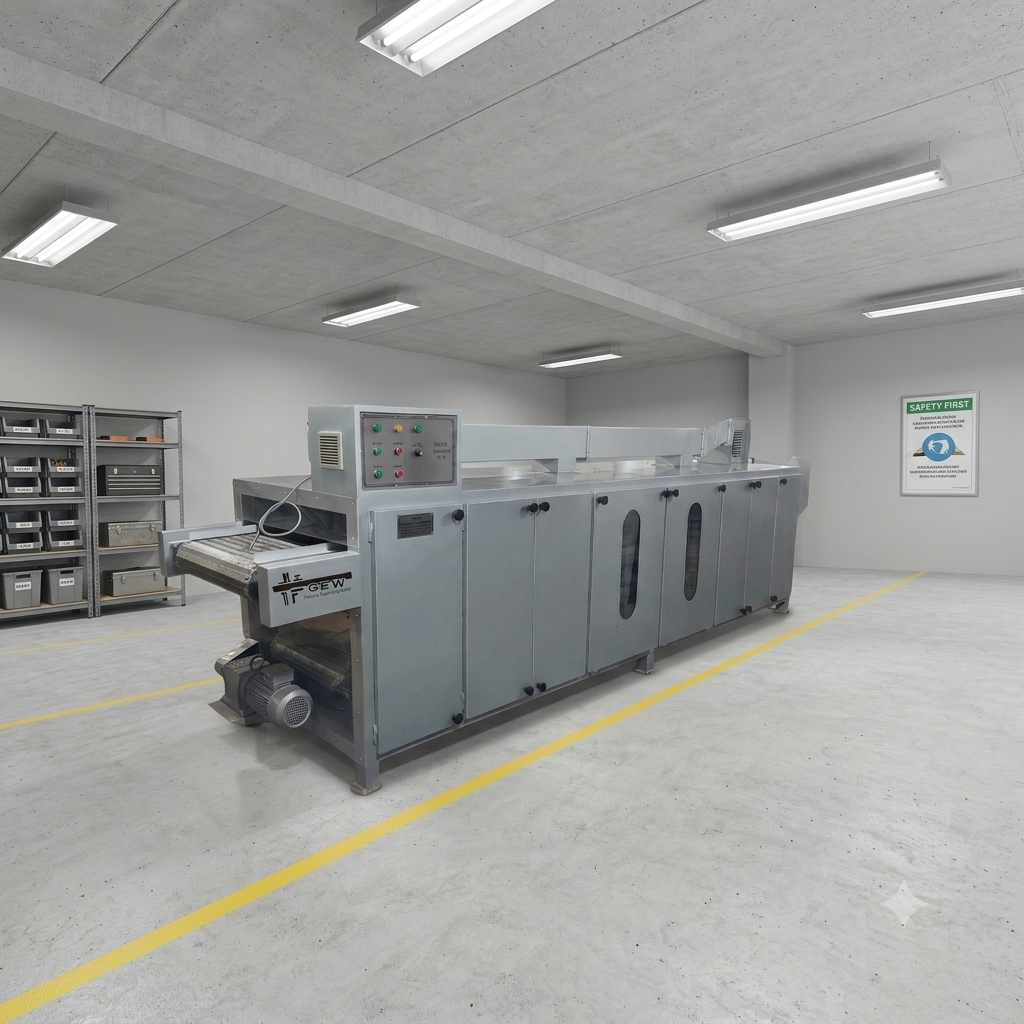

About This Machine
The Three Step Cooling Conveyor is designed for gradual and controlled cooling of confectionery products using three high-performance air circulation fans across multiple stages. A step-by-step cooling process ensures uniform setting, better shape retention, and improved product texture for bubble gum, toffees, and candies. Constructed with a food-grade structure, it delivers hygiene, durability, and smooth integration into your production line.
General Engineering Works · Est. 1992
3 Floors
Bubble Gum
2.2 kW
Motor Power
3 kW
Inverter
3 kW
Air Blower
3000 kg
Weight Approx
How It Works
The cooling process.
Four precision stages carry all types of bubble gum through the three-floor cooling tunnel from the forming machine to packaging-ready temperature.
01
Gum Inlet
Freshly formed bubble gum pieces enter the conveyor from the forming machine onto Floor 1, totally enclosed by the MS sheet cover.
02
Belt Transfer
The 2.2 kW motor with 3 kW inverter drives the belt across all three floors in alternating directions, maximising cooling contact time.
03
Air Blower Cooling
The 3 kW air blower pushes continuous airflow through all three floors inside the MS sheet enclosure, drawing heat away evenly at every level.
04
Packaging-Ready Output
Cooled pieces exit at the correct temperature, original shape fully retained, ready for coating, wrapping, or direct packaging.

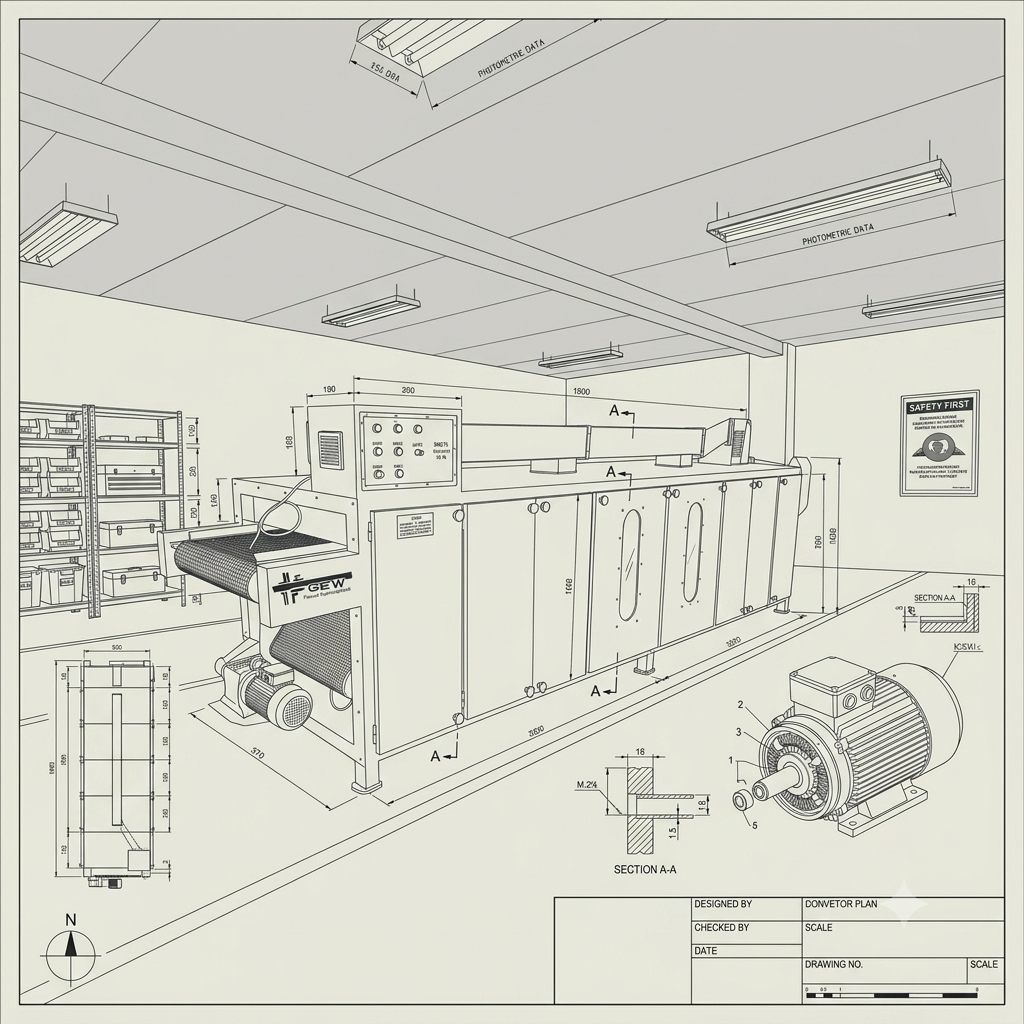

Air Blower System & Coverage
Fans every floor.
Totally covered.
Even temperature.
The 3 kW air blower runs fans across all three floors inside the total MS sheet cover, delivering consistent forced-air cooling to every piece of bubble gum on every belt. Combined with alternating belt direction on each floor, no gum piece is left with uneven cooling before the outlet. The total MS sheet enclosure also protects the product from dust and contamination throughout the full cooling cycle.
- Fans at every floor level for continuous forced-air cooling
- Alternating belt direction across three floors for even heat removal
- Total MS sheet coverage for product protection and dust exclusion
- 2 mm food-grade belt for safe hygienic product contact
- Compact footprint for easy integration into bubble gum lines
Air Blower
3-Floor Fan System
Applications
Where step-by-step cooling matters.
Built for bubble gum production lines where cooling consistency, food-grade belt contact, and MS sheet protection are essential.
All Types of Bubble Gum
Designed for all types of bubble gum cooling, carrying product through three floors from forming temperature to packaging-ready consistency.
Post-Forming Lines
Positioned directly after forming or extrusion machines for a seamless, uninterrupted handoff into the cooling tunnel.
Even Airflow Needs
A dedicated 3 kW air blower keeps temperature drop consistent across all three stages.
Pre-Packaging Stage
Delivers fully cooled, stable bubble gum to the fold wrap or packaging station at consistent output every cycle.
Ready to order?
Get in touch with our engineering team for a custom quote, technical specifications, or installation guidance.
