UNI-PLAST
DIE HEAD
Center-fill forming for every gum & candy variety.
GENS_3000_022 · 3000–3500 Pcs/min · 3.5 kW Motor · Bearing Steel Moulds
3000–3500 pieces per minute. Every shape. Every fill.
The Uni-Plast Die Head is a high-output forming line engineered for center-filled bubble gum, toffee, and candy precision-formed at speed, shift after shift.
System Overview
High-speed die head. Bearing steel moulds. Full control.
Uni-Plast Die Head 3000–3500 Pcs/min · 3.5 kW Motor · 5 kW Inverter · Elevator Conveyors · Bearing Steel Moulds
Die Head Output Flow Diagram
3.5 kW
Motor Power
5 kW
Inverter
Bearing
Steel
Steel
Mould Material
3,500+
Pcs / Min
0.4 kW
Elevator Gear (×2)
0.75 kW
Elevator Inverter (×2)
Food
Grade
Grade
T-Belt Elevator
3,000 – 3,500
Production Pcs / Min
3.5 kW
Main Motor
5 kW
Main Inverter
0.4 kW ×2
Elevator Gear Motors
0.75 kW ×2
Elevator Inverters
Specifications
Built to form. Engineered to last.
Every component selected for high-speed center-fill forming and continuous industrial confectionery production.
All Types
Function
Center-filled bubble gum, toffee and candy full variety forming in a single line
3,000 – 3,500
Pcs / Min
High-throughput output for continuous, large-scale confectionery production
3.5 kW
Motor Power
Powerful main drive motor for consistent die head operation at full production speed
5 kW
Inverter
Variable-speed 5 kW inverter for precise forming speed control across all product types
0.4 kW ×2
Elevator Conv. Gear
Dual elevator conveyor gear motors for smooth, reliable product transfer on the line
0.75 kW ×2
Elevator Inverter
Independent inverter-controlled elevator drives for adjustable belt speed on both conveyors
T-Belt
Elevator Belt Type
White food-grade T-belt for hygienic, reliable product elevation and transfer
Bearing Steel
Mould Material
High-grade bearing steel moulds for precision forming, long service life and consistent shape output
Advanced
Control Panel
Modern control panel with all new features for simple, reliable full-line operation
3,500 Pcs/min
Peak Output
3.5 kW
Motor Power
5 kW
Inverter
Bearing Steel
Mould Grade
Food Grade
T-Belt Elevator

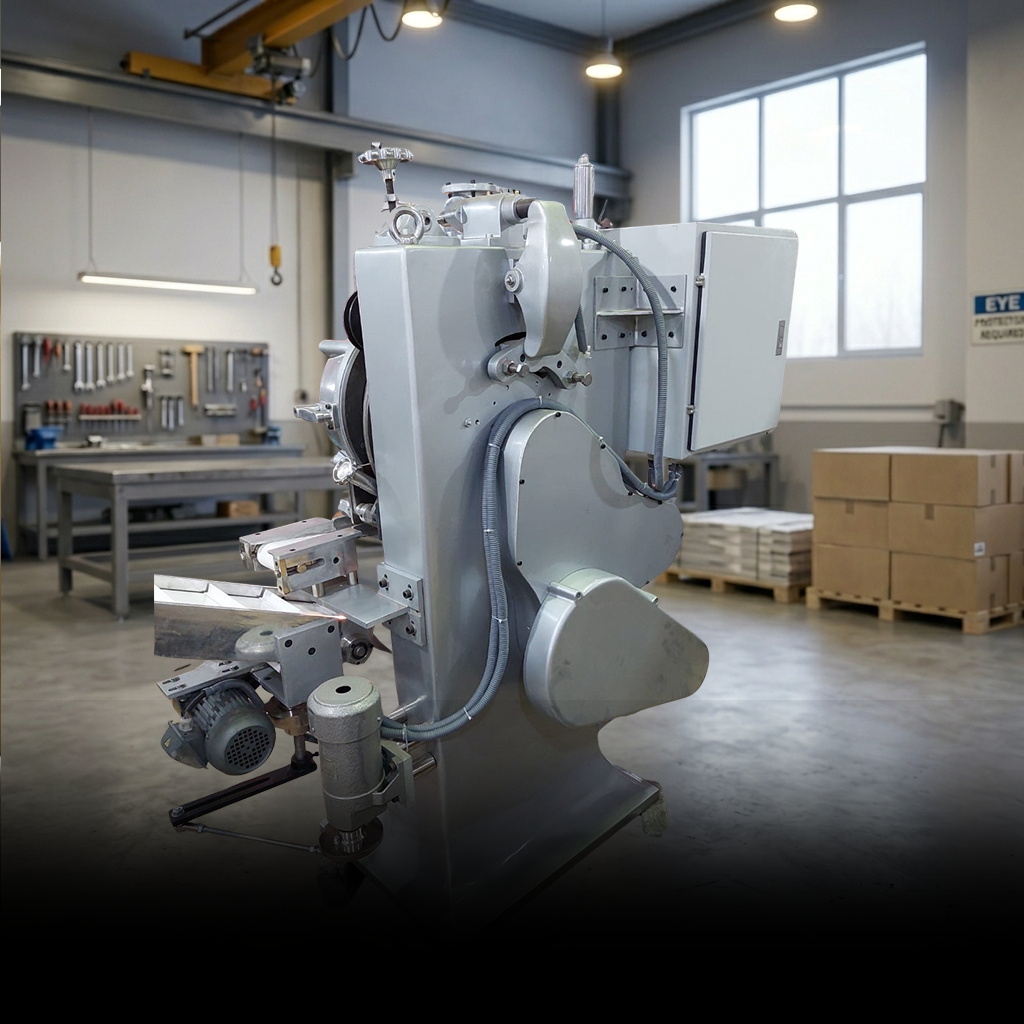

Function & Design
Precision forming. All fill types. Full-speed line.
The Uni-Plast Die Head forming line is purpose-built for center-filled bubble gum, toffee, and candy production. Bearing steel moulds deliver consistent shape accuracy at 3,000–3,500 pieces per minute. The 5 kW variable-speed inverter gives precise control over output rate across all product types, while the dual elevator conveyor system keeps the line running without interruption.
- Bearing steel moulds precision shape forming across all candy varieties
- 3,000–3,500 Pcs/min output high-throughput continuous production
- 5 kW inverter for variable-speed forming speed control
- Dual 0.75 kW inverter-driven elevator conveyors for seamless line flow
- Advanced control panel with all latest operational features
3,500
Pcs / Min Peak Output
About This Machine
Uniplast forming lines are engineered specifically for bubble gum, hard candy, chew candy, toffee and gum with or without liquid or powder filling. Its production speed is 3,000 pieces per minute built for reliability, versatility and continuous industrial output.
General Engineering Works · Est. 1992
How It Works
The forming process.
Four precision stages take raw gum or candy compound to fully formed, filled pieces consistent quality, every cycle.
01
Compound Feed
Bubble gum, toffee or candy compound is fed into the Uni-Plast die head, ready for high-speed forming.
02
Center Fill Injection
Liquid or powder filling is precisely injected into the compound stream consistent fill volume every piece.
03
Die Head Forming
Bearing steel moulds form each piece at 3,000–3,500 Pcs/min precise shape, reliable repeatability.
04
Elevator Conveyor Transfer
Dual food-grade T-belt elevator conveyors transfer finished pieces down the line for cooling, wrapping, or packaging.

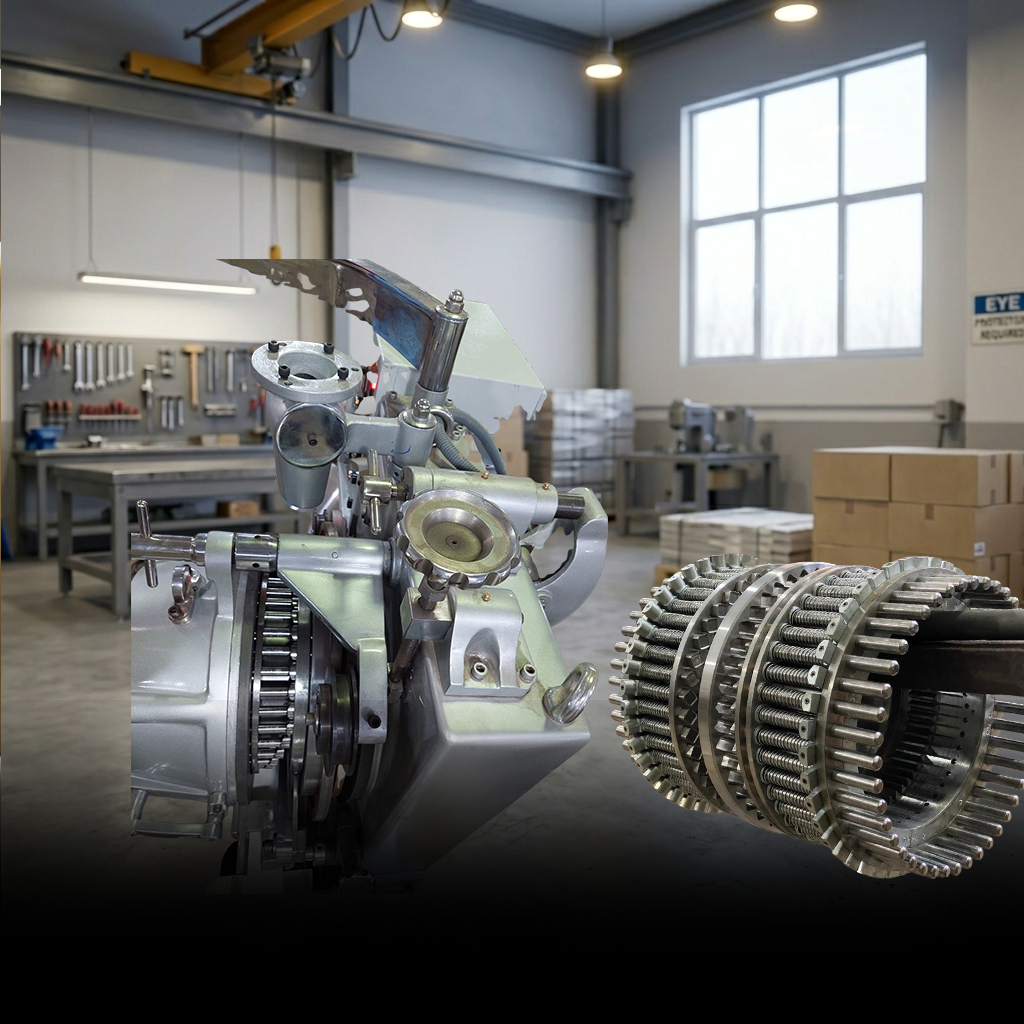

Build & Drive System
3.5 kW motor. Bearing steel moulds. Dual elevator drive.
Every driven component is selected for long-run industrial reliability. The 3.5 kW main motor and 5 kW inverter deliver stable, controllable forming force across all product sizes and speeds. Independent 0.4 kW gear motors with 0.75 kW inverters on each elevator conveyor allow fine-tuned belt speed and tension throughout the production cycle.
- 3.5 kW main drive motor stable power for full-speed forming
- 5 kW inverter full variable speed forming control
- 0.4 kW elevator gear motors (×2) reliable product elevation
- 0.75 kW elevator inverters (×2) independent belt speed control
- White food-grade T-belt hygienic, durable conveyor surface
Bearing Steel
Mould Material Grade
Applications
Where precision forming matters.
Serving production lines where shape accuracy, fill consistency, and continuous throughput are non-negotiable.
Center-Filled Bubble Gum
Purpose-built for liquid or powder center-filled bubble gum consistent fill volume and shape accuracy at full production speed.
Toffee & Chew Candy
Handles toffee and chew candy compounds across all standard sizes bearing steel moulds deliver repeatable results at every shift.
Hard Candy
Suitable for hard candy forming with or without filling the same die head covers your full confectionery variety range.
Integrated Production Lines
Feeds directly into cooling conveyors, wrapping machines and packaging lines for seamless, uninterrupted production workflow.
Ready to order?
Get in touch with our engineering team for a custom quote, technical specifications, or installation guidance.
